Introduction
Most B2B dashboards fail for a simple reason: they show more data without helping anyone decide what to do next. Teams add another chart, another filter, another KPI card, and the screen gets busier while decisions get harder.
A 2024 experimental study of 524 respondents found that increased visualisation complexity reduced decision certainty and accuracy. Users also took longer to act, even when the underlying data was identical. Greater complexity didn't mean greater clarity; it slowed decisions down.
This guide covers how to design dashboards that turn raw data into a prioritised path: signal, interpretation, action. We'll walk through decision-led planning, information hierarchy, visualisation choices, and the trust and performance factors that make or break adoption.
Key Takeaways
- Design around decisions and workflows, not available data sources or widgets.
- Use role-aware hierarchy so executives, operators, and analysts each see what matters to them first.
- Match chart types, filters, and alerts to the specific question a user is asking.
- Treat metric definitions, freshness, accessibility, and performance as UX requirements, not backend details.
Start With Decisions, Users, and Data Context
Define the Dashboard's Job Before Choosing KPIs
Before picking a single metric, ask three questions:
- What recurring questions must this dashboard answer?
- What decisions follow from those answers?
- What actions should users be able to take without leaving the screen? Build a decision map that ties each proposed metric to a user role, a business objective, a decision, and an action. If a metric is interesting but does not support a decision or show a meaningful change, cut it or move it to a drill-down view. That filter does more to prevent clutter than any layout tweak later.
Segment Users by Role and Decision Cadence
Executives, operators, analysts, and customers want different data and work at different speeds. Nielsen Norman Group separates operational dashboards, built for time-sensitive decisions such as an emergency dispatcher's incident view, from analytical dashboards, built for slower review such as a manager checking daily sales trends. That split shapes layout, update frequency, and interaction design, as Nielsen Norman Group notes on dashboard types. For each role, document:
- When they open the dashboard, and why
- Their existing data literacy and familiarity with the product
- Whether they need monitoring, diagnosis, reporting, or execution Where differences are substantial, offer role-based default views — but keep metric definitions and core navigation consistent across the product. Nothing erodes trust faster than two teams seeing different numbers for "active users."
Map the Workflow, Then Audit the Data

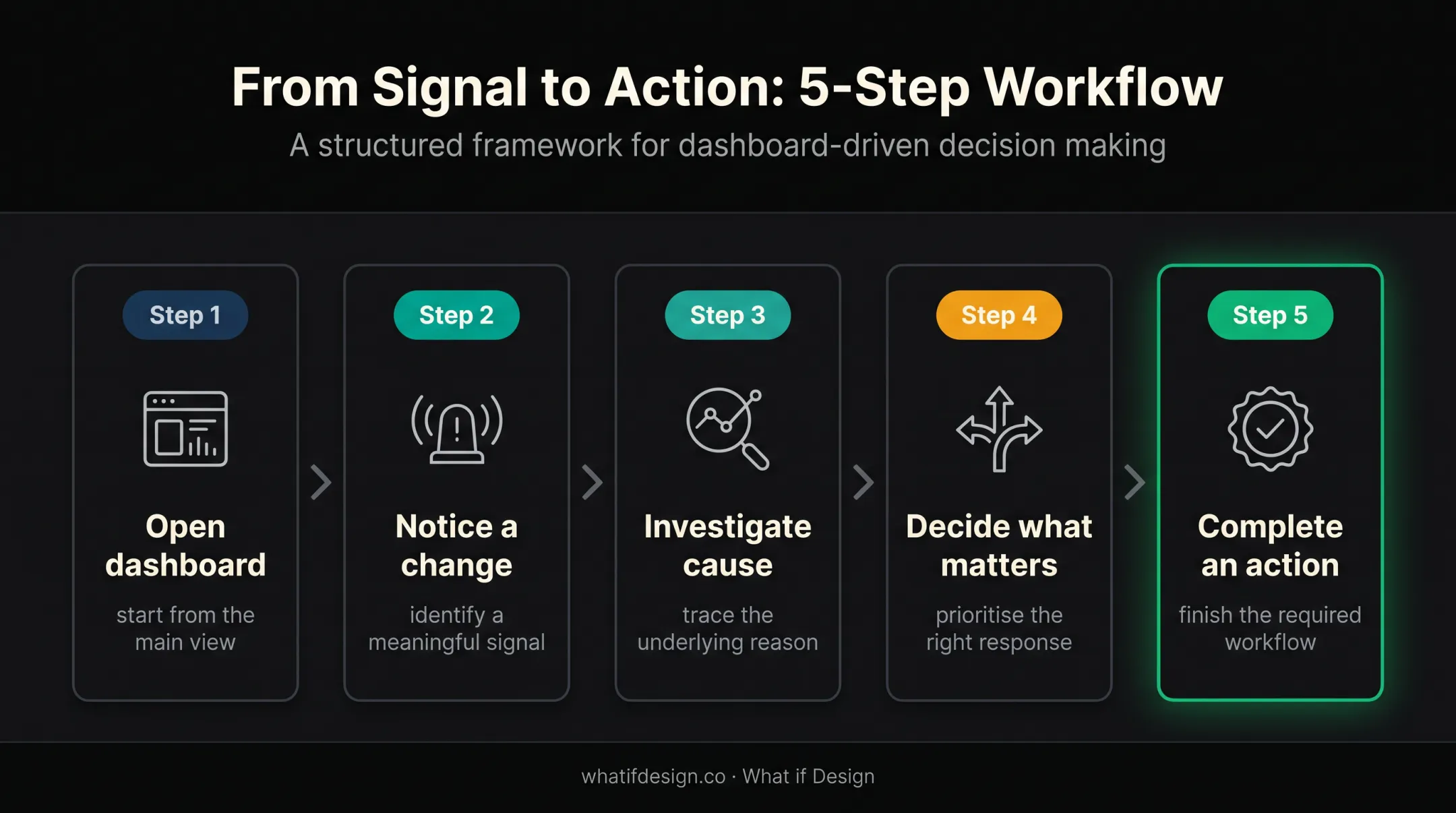

Trace the actual journey: open dashboard → notice a change → investigate the cause → decide what matters → complete an action. Along the way, find the spreadsheets, exports, and side tools people currently use to patch gaps. That workaround list tells you exactly what the dashboard should consolidate. Before finalising any layout, audit the data model itself:
- Sources and ownership
- Update frequency
- Calculation rules and units
- Known gaps or conflicting definitions We've seen polished interfaces fail user testing because two teams calculated "conversion rate" differently. The remedy is rarely a redesign. Use a shared metric glossary with plain-language definitions, formulas, scope, and "last updated" context for any figure that could be read two ways.
Build a Clear Information Hierarchy
Organise Around Progressive Disclosure
Structure the default view in three layers: summary, context, detail. Priority KPIs surface first, trends and comparisons explain movement, and tables or drill-downs sit behind a click for investigation. Showing every available data point at once makes critical signals look no more important than secondary noise, so users can't tell what deserves attention. Decide deliberately:
- What belongs on the first screen
- What belongs in a secondary view
- What stays reachable only through search or export
Design Visual Hierarchy That Supports Scanning
Use position, scale, contrast, and whitespace to signal priority before anyone reads a single label. NN/g warns that F-shaped scanning isn't a universal law: it's a default that appears when strong visual cues are absent, and design can override it entirely. Don't impose a generic F or Z pattern on a dashboard; validate placement with real users instead. A reliable dashboard anatomy helps here. Define consistent regions for:
- Navigation and global filters
- KPI summaries and trend panels
- Alerts and detailed data tables
- Action zones Reusable card anatomy (label, value, unit, comparison, time frame, status) means users don't relearn each module every time they open a new section.
Give Every KPI Enough Context
A number without a reference point is almost meaningless. Pair each KPI with a baseline, target, previous period, or benchmark, and make the comparison logic explicit: is this change absolute or relative, and is an increase even good for this metric? Include scope, date range, and data freshness so users know exactly what they're looking at. Example from practice: In an Asset Performance Management dashboard our team worked on, status counts are split by work type:
- Preventive Maintenance: 45 new, 32 in-progress, 7 overdue, 9 needing reassignment
- Corrective Maintenance: 15 new, 13 overdue Red indicators flag overdue items instantly, so no one has to read every row to spot the urgent ones. A separate "Asset Performance Indicators" section, with a Scheduled vs Assigned vs Completed comparison, keeps diagnostic detail away from the at-a-glance view.
Use Navigation That Preserves Context
Let users move from a high-level signal to underlying records without losing the filters or time period that shaped the original view. Compare drawers, detail pages, and modal panels based on how much interaction the task actually requires, and always provide a clear way back to the overview. Exploration that dead-ends is worse than no drill-down at all.
Design Visualisations and Interactions for Action
Match the Chart to the Question
| User's question | Best-fit visualisation |
|---|---|
| How is this changing over time? | Line or area chart |
| How do categories compare? | Bar chart |
| What's the precise operational detail? | Table |
| Is there a relationship between variables? | Scatter plot |
| What's the status right now? | KPI card |
Avoid patterns that invite misreading:
- Dense time series with no aggregation
- Too many categories in one view
- Decorative 3D effects
- Dual axes with independent scales
Annotations, target bands, and direct labels usually communicate intent better than a legend off to the side.
Make Filtering Powerful, Not Overwhelming
Separate global filters (whole dashboard) from local filters (one chart). Then keep the control surface lean:
- Prioritise filters people actually use
- Show a visible applied-filter count
- Make reset behaviour obvious
- Push advanced or rare controls behind a secondary panel
- Offer saved views for repeated workflows
Operators rarely want to rebuild the same filter combination every Monday morning.
Design Interactions That Reveal Detail Without Noise
Tooltips, hover states, and expandable rows work well for secondary detail. Never put essential information only behind a hover: touch users, keyboard users, and anyone who needs more time will miss it.
Give clear feedback for every filter application, chart update, and export so users always know the system responded.
Surface Anomalies Responsibly

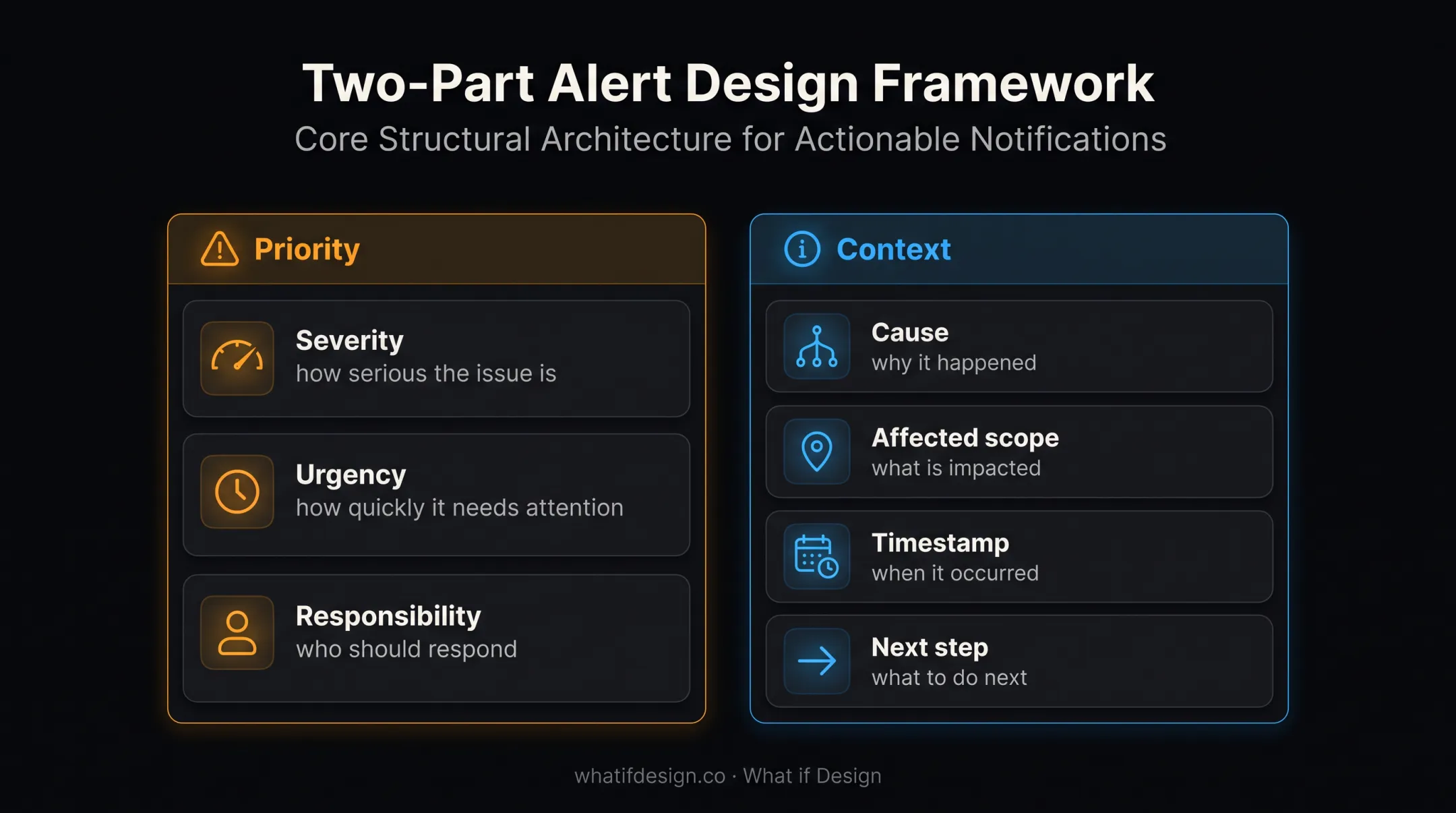

Not every change is an emergency. Prioritise alerts by severity, urgency, and user responsibility rather than colouring everything red. Pair each alert with its cause, affected scope, timestamp, and a next step where the data supports it.
If you layer in AI-generated summaries, show the underlying data context and flag uncertainty. A confident recommendation with no evidence trail gets ignored the first time it is wrong.
Build Accessibility Into Every Chart
Colour alone should never carry meaning. Combine it with icons, patterns, or text labels.
The WCAG 2.2 standard, finalised in October 2023, sets concrete conformance criteria for enterprise software:
- 4.5:1 contrast for normal text
- 3:1 for large text and essential graphical objects
- Visible keyboard focus states
- No information conveyed by colour alone
Provide text summaries or accessible data tables for complex charts. Test with real assistive technology, not only automated scanners.
Make the Dashboard Trustworthy, Performant, and Inclusive
Design Every Data State
A dashboard is judged by its worst moment, not its best. Specify:
- Empty states for new accounts or zero-result filters
- Loading patterns that keep users oriented and show partial vs. complete data
- Error messages that explain what happened and what to do next A generic "Something went wrong" after a failed export does nothing for a user trying to close a report before a 9 am meeting.
Treat Performance and Freshness as UX
Set expectations with visible refresh timestamps and stale-data warnings. Work with engineering on caching, pagination, and lazy loading matched to your data volume. Test with realistic datasets, long labels, and slow networks—not the clean sample data from a demo environment. A dashboard that loads instantly with ten rows and chokes with ten thousand isn't production-ready.
Validate With Real Tasks

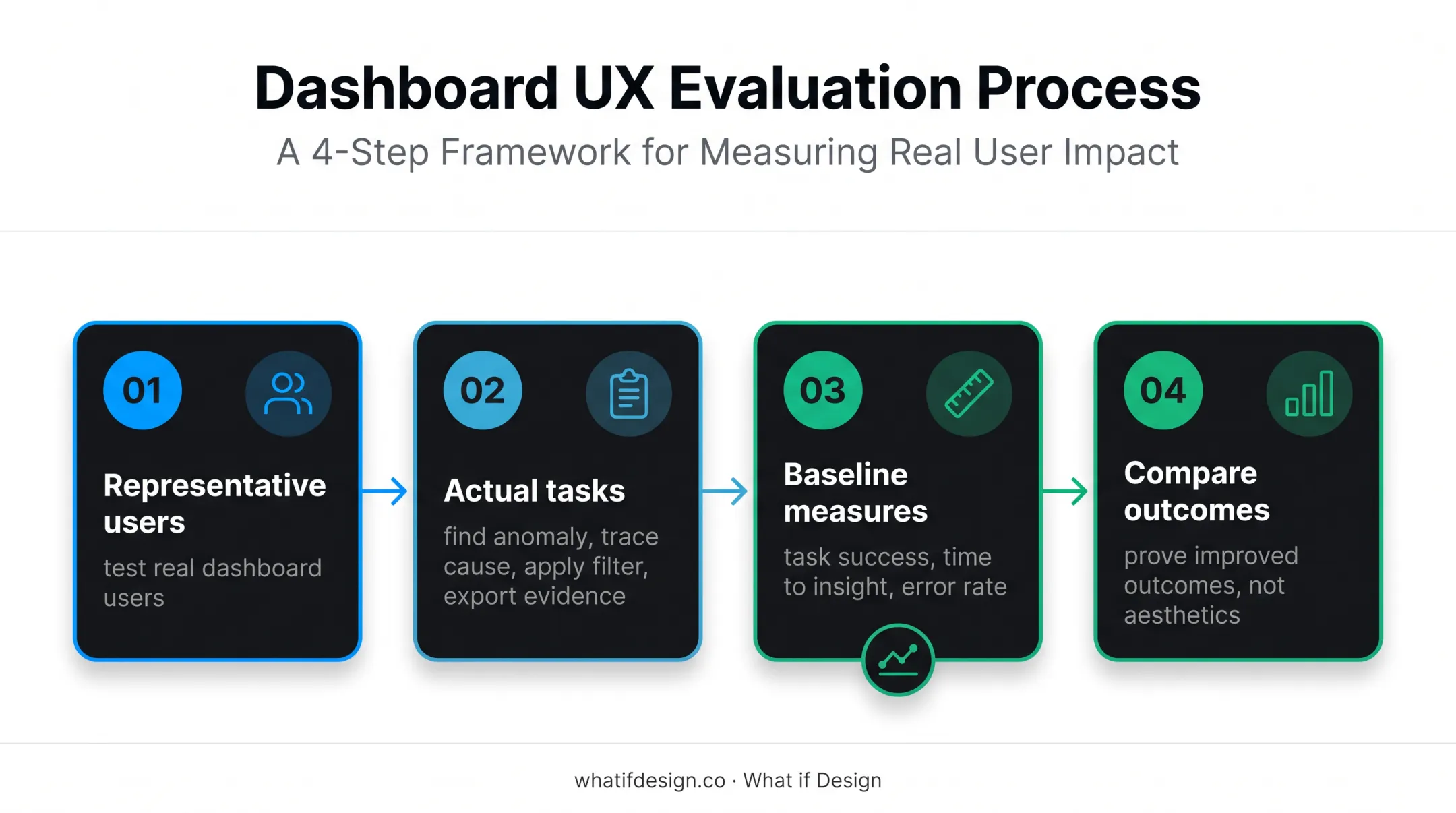

Test representative users completing actual tasks: finding an anomaly, tracing a cause, applying a filter, exporting evidence. Measure before you redesign:
- Task success rate
- Time to insight
- Error rate Establish that baseline first so you can show the new version improved outcomes, not just aesthetics.
Design for Inclusive Use
Data-heavy B2B dashboards fail more users than the happy path suggests. Build in:
- Keyboard reach for filters, tables, and export actions
- Contrast and text resizing that hold up on dense charts
- Clear labels and visible focus states for assistive technologies Climate tech, ESG, and energy products often hit this wall hardest. Emissions factors, grid interconnection states, and battery health curves are genuinely complex, and turning that structure into a usable interface takes product strategy plus UX depth. What if Design co-founder Tejas Mahajan has led UX for battery management systems, fleet platforms, and ESG reporting tools, including enterprise software for the Ministry of Health of Saudi Arabia—experience that maps directly when a technical B2B team must bridge data modeling and interface design without a long internal ramp-up.
Conclusion
The best dashboard UX helps the right user understand a situation, trust the data, and take the next action quickly. Chart count is secondary.
A practical starting sequence:
- Map decisions and roles before touching the interface
- Audit metric definitions and data states
- Prototype the hierarchy with realistic (not sample) data
- Test priority workflows with representative users
- Iterate using behavioural evidence, not opinion
We've applied this exact sequence on platforms like Vested Futures, an ESG vendor-sourcing dashboard built for corporate sustainability teams. The same decision-first discipline holds whether you track maintenance tasks or carbon vendor compliance.
Frequently Asked Questions
What are the most important dashboard UX best practices?
Design around decisions, not data availability. Use role-aware hierarchy, give every KPI context, choose visualisations that match the user's question, and build in accessibility, performance, and testing from the start.
How do you reduce information overload in a B2B dashboard?
Prioritise decision-critical metrics on the first screen, group related information visually, and use progressive disclosure to push detailed analysis into drill-downs. Everything else can wait behind a click.
How should dashboards be designed for different user roles?
Document each role's decision cadence, data literacy, and whether they need monitoring or deep diagnosis. Offer role-based default views where needs genuinely differ, but keep metric definitions consistent everywhere.
Which chart types work best for dashboard UX?
Line charts suit trends, bars suit comparisons, tables suit precise detail, scatter plots suit relationships, and KPI cards suit current status. Avoid decorative 3D effects and dual axes with independent scales.
How can you make a dashboard accessible?
Never rely on colour alone — pair it with icons, patterns, or labels. Meet WCAG 2.2 contrast ratios, ensure full keyboard navigation, and provide text alternatives or data tables for complex charts.
How do you measure whether a dashboard design is effective?
Run task-based testing: measure success rate, time to insight, error rate, and abandonment on real workflows like finding an anomaly or exporting evidence. Compare results before and after changes.
