Before a major UK refinery incident in 1994, operators at Milford Haven faced a flood of alarms for five hours straight, unable to tell which signals mattered. At Solvay's Novecare plant, alarm summaries ran three to four pages long before the company rationalised its system — after the cleanup, the standing alarm count dropped by 84%, down to just 10-12 active alerts at any time.
That's the gap good data visualisation UX closes. For climate-tech, energy, EV, industrial, and ESG products, it connects measurements to context, confidence, and action. This article walks through a practical framework: define the decision, structure the data, pick the right visual form, design the interaction, and test whether people actually act correctly on what they see.
Key Takeaways
- Every sensor visualisation should answer a specific user question, not just display available data
- Layer dashboards from summary to diagnosis to raw detail using progressive disclosure
- Treat uncertainty, accessibility, and interaction design as UX decisions, not afterthoughts
- Measure whether users take the right action, not just whether the screen looks clean
Design the Decision Journey Before Designing the Dashboard
Most dashboard projects start with a chart library and a data feed. That's backwards. The first question should be: what decision does this screen need to support, and how much time does the user have to make it?
An operator watching a live energy-system fault has seconds. An engineer investigating why a battery pack underperformed last Tuesday has hours. An executive reviewing quarterly fleet health has weeks. Same underlying sensor data, three completely different jobs.
Map the Journey, Not Just the Metric

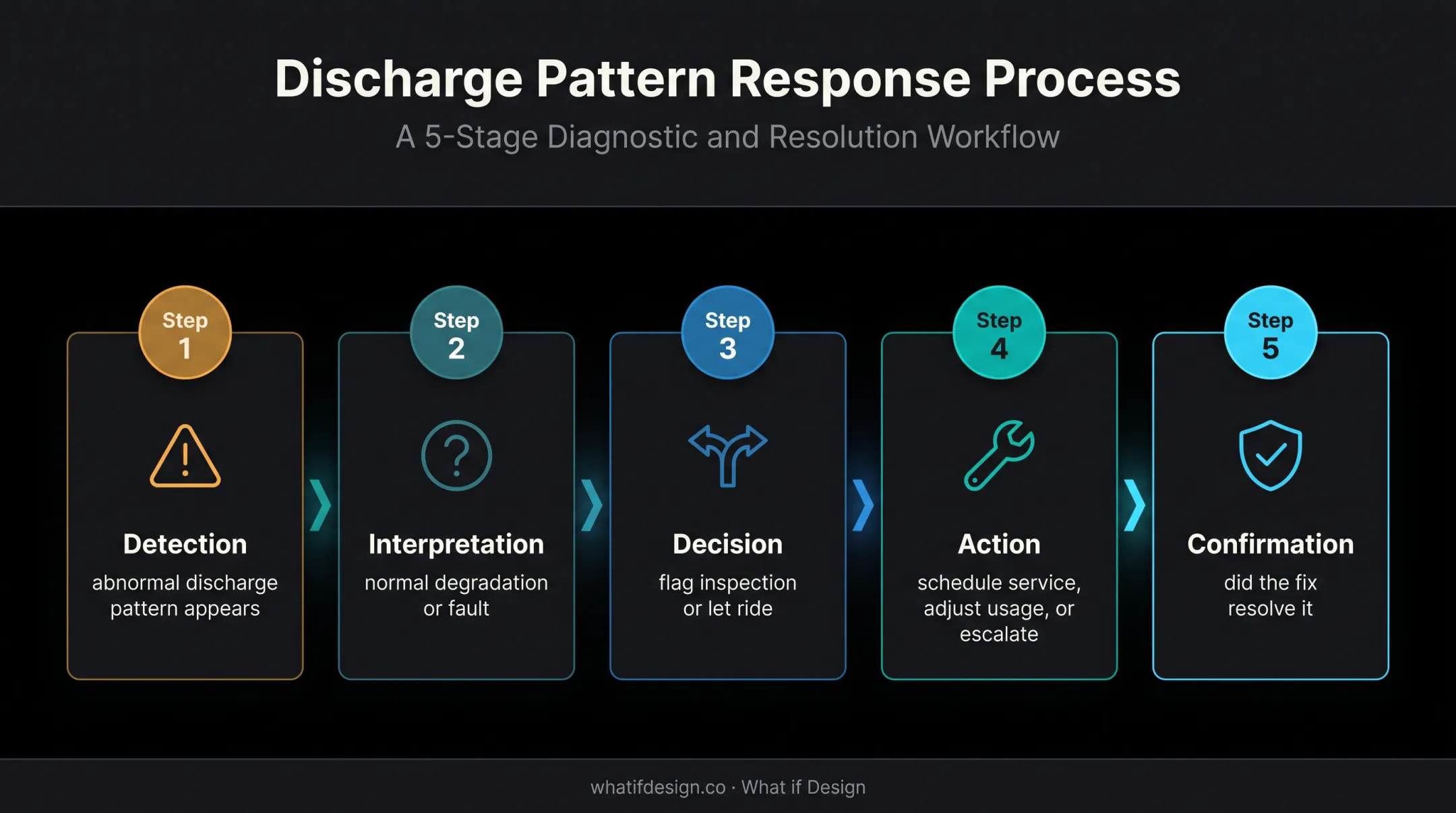

Picture a fleet operator using a battery-monitoring tool like Batteryze, which pairs a health score with state-of-charge tracking and a risk calculator for EV-battery insurers. The useful version of this product doesn't stop at "here's the voltage curve." It walks the signal through:
- Detection — an abnormal discharge pattern appears
- Interpretation — is this normal degradation or a fault?
- Decision — flag for inspection, or let it ride?
- Action — schedule service, adjust usage, or escalate to the insurer
- Confirmation — did the fix resolve it?
Skip any one of those steps and the dashboard becomes a reporting tool instead of a decision tool.
Different Roles Need Different Views
ESG vendor-sourcing platforms face a similar split. A sustainability analyst sourcing suppliers needs comparison views across vendors and criteria. A procurement lead signing off on a contract needs a summary with a clear recommendation. Building one dashboard for both audiences usually satisfies neither.
Whatever the role, every view still needs enough context for a number to mean something on its own. Before building anything, define the minimum context required to interpret a value:
- Units and timestamp
- Baseline or target range
- Operating state (running, idle, maintenance)
- Location and relevant asset ID
If a number can't answer "compared to what?" without the user clicking elsewhere, it isn't ready to ship.
A Practical Workflow for Sensor-Data Visualisation UX
Good sensor UX follows a sequence, not a template. Skipping discovery to jump straight into chart selection is the single most common mistake we see in climate-tech and deep-tech products.
Start with Discovery, Not Design
Document the basics before opening a design tool:
- Sensor sources, sampling frequency, and update latency
- Units and known data gaps
- Who actually relies on each signal, and for what decision

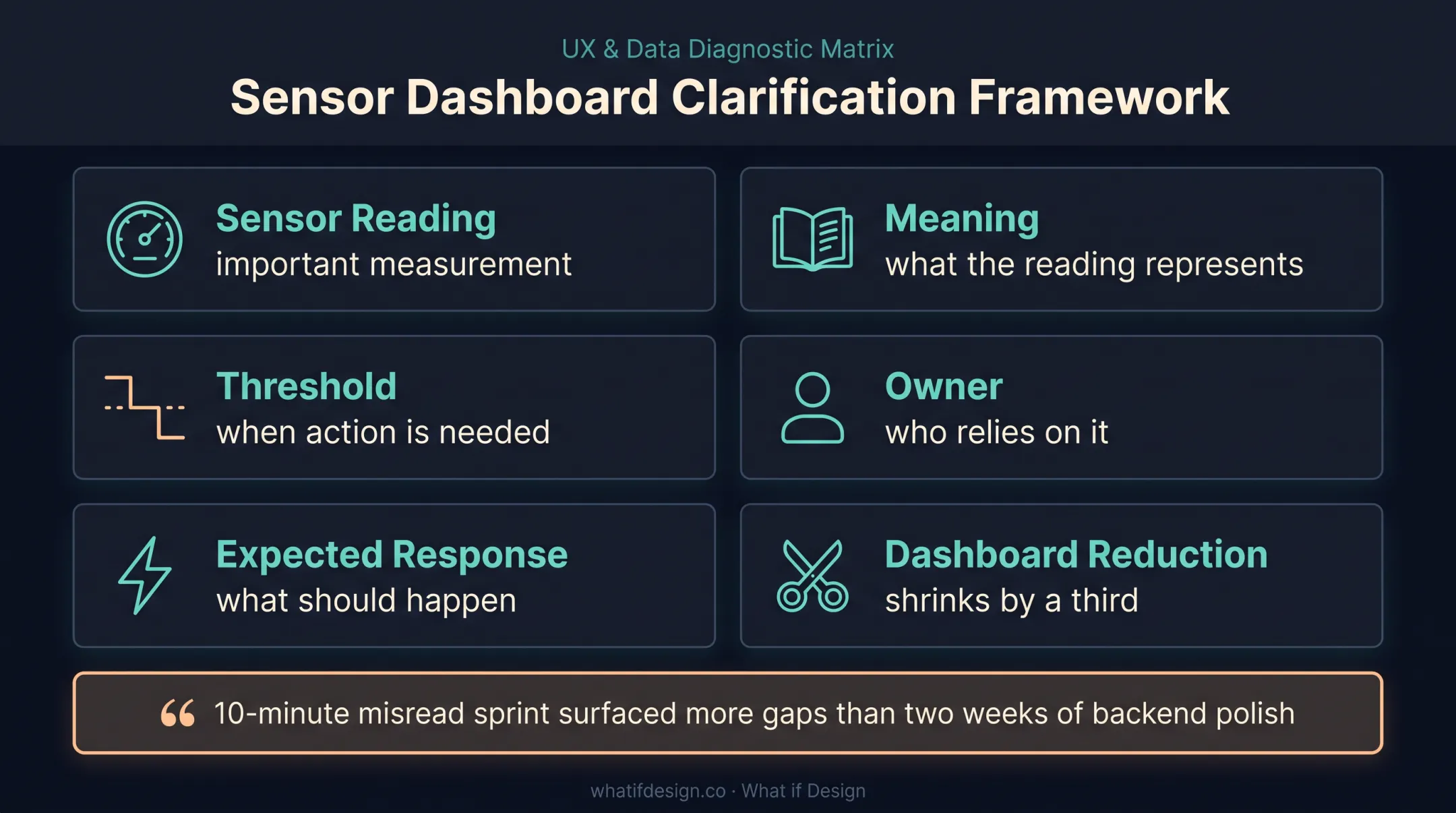

From there, build a metric and decision inventory: a simple table linking each important reading to its meaning, threshold, owner, and expected response. Anything that doesn't map to a decision gets cut. This single exercise tends to shrink dashboards by a third.
One carbon-capture monitoring team we worked with ran a quick exercise: ten minutes, timer running, sketching every way an operator might misread the current monitoring screen. That single sprint surfaced more usability gaps than two weeks of backend polish had.
Prototype the Messy States, Not Just the Ideal One
Most teams design for normal operation and treat everything else as an edge case. That's the wrong order. Design for these states first:
- Threshold breach
- Missing or delayed data
- Conflicting sensor readings
- Maintenance mode and recovery
A Ministry of Health asset-tracking platform we designed surfaced maintenance status directly in the task queue:
- 45 new preventive tasks, 32 in progress
- 7 overdue, 9 needing reassignment
- 15 new and 13 overdue corrective tasks
Overdue items were visually distinct, not buried in a filtered view nobody opens.
Messy states only hold up when real operators stress-test them. Our UX engagements for clean-tech and climate-tech platforms typically run four to eight weeks through insight sprints, prototypes, and iterative testing before anything ships.
Choose Visualisation Patterns That Match the Sensor Question
The chart type isn't a style choice. It's an answer to a specific question. Match the pattern to the question first, and the "pretty" part sorts itself out.
| Sensor question | Pattern to use | Watch out for |
|---|---|---|
| How did this reading change over time? | Line chart with event markers | Irregular sampling — use point markers, not a smooth line |
| Which site or asset performs better? | Sorted bar or bullet graph | Keep comparison groups logically equivalent |
| Do two readings move together? | Scatter plot | Correlation isn't causation — label outliers |
| Where are patterns across assets or time? | Heatmap | Never rely on colour alone to show meaning |
| What's the exact value and timestamp? | Sortable table | Needs filtering and drill-down links |
Aggregation Changes the Story

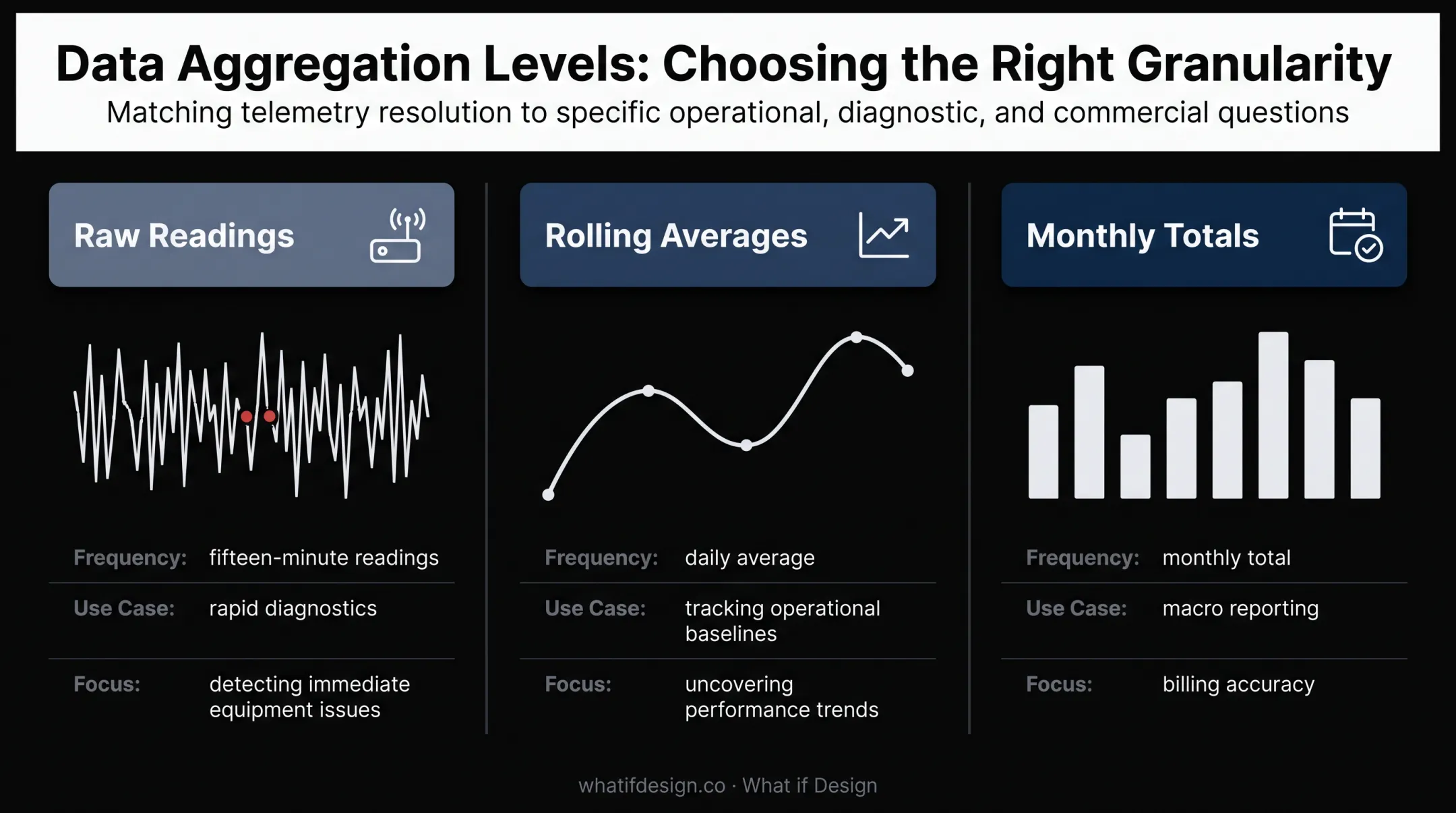

A solar-monitoring product like Shine Billing's lifetime energy dashboard for multifamily properties faces a classic aggregation choice: raw fifteen-minute readings, a rolling daily average, or a monthly total?
Each answers a different question. Raw readings show equipment issues. Rolling averages show trends. Totals show billing accuracy.
Don't default to one aggregation level. Let the user's question decide:
- Raw readings → equipment diagnostics
- Rolling summaries → performance trends
- Percentiles or min/max ranges → variability and outlier detection
- Event-based views → maintenance and incident history
Reserve maps and network diagrams for genuinely spatial or relational questions. A heatmap of asset locations only earns its place if geography actually changes the decision.
Design Interactions That Help Users Investigate and Act
A good first view answers the immediate question. Everything else (hover, filter, drill-down) should be one click away, not buried.
Nielsen Norman Group's research on progressive disclosure is blunt about this: show the important choices first, reveal specialised detail on demand, and make sure the path to that detail is obvious. Task studies and usability testing, not guesswork, should decide where that line sits.
Make Alerts Decisions, Not Decorations
A driver-monitoring interface we designed included dedicated "Alarm Management" and "Driver Alerts" actions, built around direct input from the operations team and road-safety stakeholders reviewing real incident data. That grounding mattered: an alert divorced from its operational context is just a red dot.
Every alert needs:
- Severity and affected asset
- Time of occurrence
- Confidence or data-quality flag
- Recommended next step
- Acknowledgement status
Account for Sensor Reality

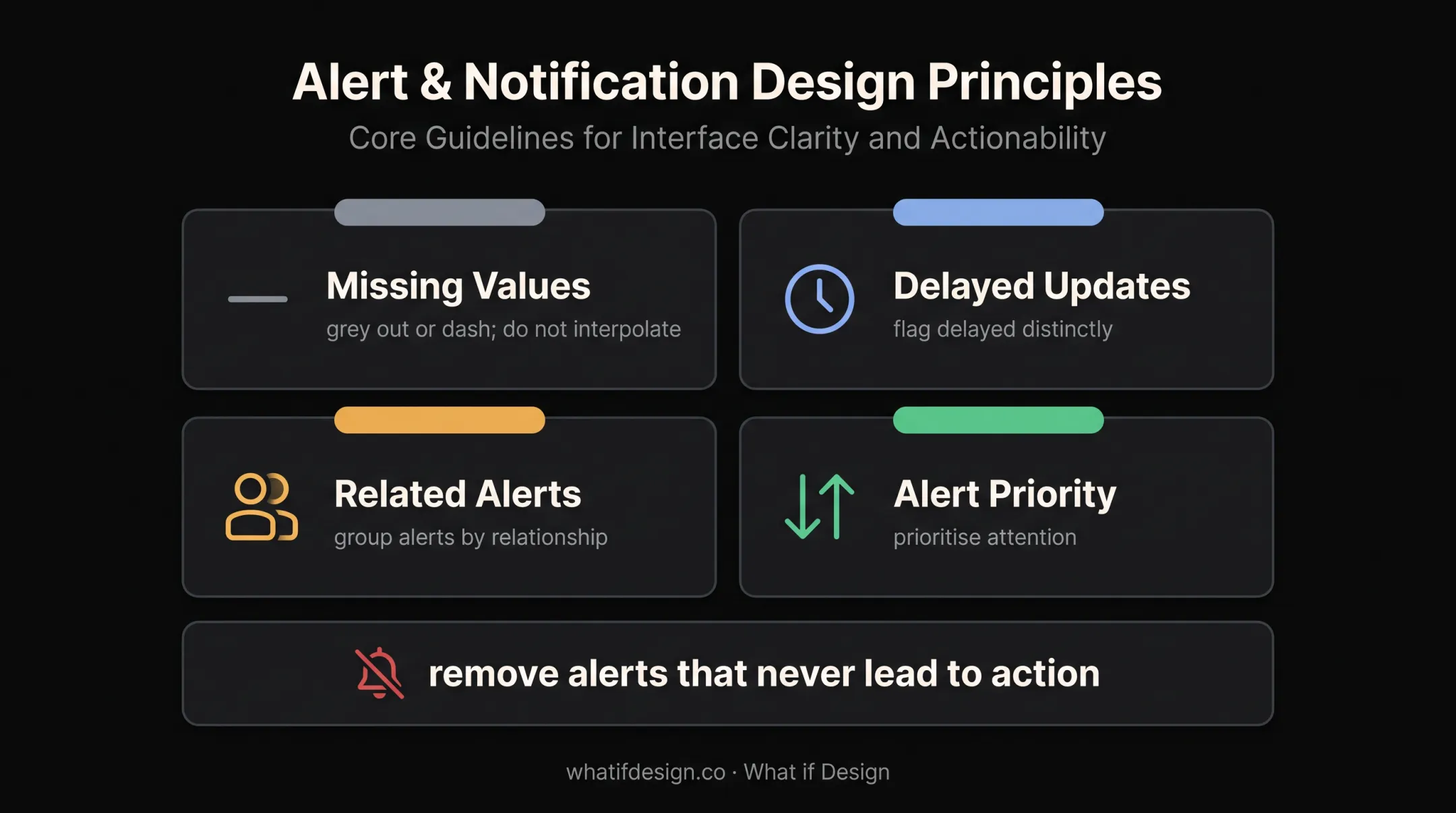

Missing values, delayed updates, spikes, and calibration drift are normal, not exceptional. Label them explicitly instead of letting a stale reading masquerade as a live one:
- Grey out or dash missing values rather than interpolating silently
- Flag "delayed" distinctly from "current"
- Group related alerts instead of firing one per sensor
- Give users a way to prioritise which alerts need attention first
Reducing noise this way cuts alert fatigue. Remove alerts that never lead to action instead of piling on more notifications.
Build Trust Through Clarity, Accessibility, and Validation
Operators trust dashboards that are honest about what the data does and doesn't show. Visual polish alone won't get you there.
Show Your Work
Every value that could drive an incorrect decision needs its units, timestamp, source, and quality status visible, not hidden behind a tooltip. Separate provisional readings from validated ones wherever your sensor pipeline supports it. A number that looks final but isn't yet reviewed is one of the fastest ways to erode operator trust.
Design for Every User, Not Just the Typical One
The W3C's accessibility guidance is explicit: colour must never be the only way information is conveyed. A heatmap that only works for users with full colour vision isn't finished. Practical fixes:
- Pair colour with icons, text labels, or patterns
- Support keyboard navigation for interactive charts
- Provide a data table alongside dense visualisations
- Write short text descriptions for screen readers summarising the trend
We apply this standard to our own work. Our accessibility upgrades target WCAG benchmarks directly, using Accessible Web's RAMP framework to track and prioritise fixes instead of a one-off audit.
Validate with Real Tasks, Not Opinions
Heuristic evaluation is a fast way to catch usability gaps before user testing. We've applied it to satellite-monitoring tools meant for non-expert environmental analysts, where the gap between "technically correct" and "understandable" was significant.
Test with scenarios, not demos. Ask users to:
- Find an issue
- Explain what happened
- Choose a response
- Say how confident they are
If they can't do all four, the dashboard isn't done.
Make Every Sensor Visualisation Earn Its Place
The goal is simple: help the right person read the right condition and take the next step fast enough for it to matter. More charts on screen is not progress.
Build every visualisation around that outcome:
- Start with the decision, not the chart
- Give context before colour
- Match visual form to the question being asked
- Expose uncertainty instead of hiding it
- Support investigation, not only observation
- Test the full workflow with real users before you ship
Run this audit on one live dashboard this week. For every metric, ask:
- Which metrics lead to action?
- Which ones only add noise?
- What missing context would change the answer?
Most teams find about a third of the screen fails that test. That is the point of the exercise.
If you are doing this for a climate-tech, energy, or industrial product and the brief itself feels hard to write, the decision journey usually is not mapped yet. That is a strategy gap, not a design polish problem.
Frequently Asked Questions
What are the 7 stages of data visualisation?
A practical sequence is: define the decision, understand users and data, prepare and validate the data, choose the visual form, design the interaction, test with real users, and monitor or iterate after launch.
How do you visualise sensor data effectively?
Focus on decision-relevant metrics, use time-series trends with clear context, show data-quality states honestly, choose aggregation based on the user's question, and build a clear path from insight to action.
Which chart is best for showing sensor data over time?
Line charts work best for continuous time-series readings. Add event markers for irregular sampling, and switch to tables or ranges when exact values or gaps matter more than the overall trend.
How can dashboards prevent sensor-data overload?
Prioritise a clear information hierarchy, use progressive disclosure to hide detail until it's needed, group related alerts, and separate live monitoring views from deeper investigation views.
How should missing or unreliable sensor data be shown?
Show explicit missing, delayed, stale, or low-confidence states rather than displaying them as normal readings. Break the line in a chart rather than interpolating silently across a gap.
How do you make data visualisations accessible?
Pair colour with text or icons, ensure sufficient contrast, support keyboard navigation and screen readers, and provide data tables or text summaries as alternatives to dense interactive charts.
