Introduction
Your device is finally talking. Sensors are streaming data, the gateway is connected, and the cloud pipeline works. But many hardware founders hit the same wall next: users stare at a dashboard full of numbers and still don't know what to do.
A connected product is only as useful as the decisions it helps someone make. Dump every reading onto a screen and you get noise, not insight. The real work of IoT dashboard design is connecting hardware behaviour, sensor data, and business outcomes into something a person can trust at a glance.
This article covers dashboard structure, core UX principles, the technical requirements behind reliable interfaces, startup trade-offs in tooling, and a practical path from MVP to a scalable product.
Key Takeaways
- Design around the decisions users must make, not every data point the device can collect
- Use progressive disclosure: fleet status first, device detail and controls later
- Plan explicitly for stale data, offline devices, low battery, and patchy connectivity
- Validate with realistic operational scenarios before investing in heavy development
What Is an IoT Dashboard—and Why Does It Matter for Hardware Startups?
An IoT dashboard is a visual interface that collects, organises, and presents telemetry and device states so authorised users can monitor, analyse, and sometimes control connected hardware. Unlike a static analytics dashboard, it has to represent live data, alerts, connectivity states, device commands, and historical trends all at once.
For a hardware startup, this interface shapes more than screen time. It influences:
- Perceived product quality during demos and pilots
- Onboarding speed for new customers and field teams
- Support workload when users can't tell if a reading is wrong or just stale
- Operational visibility for the team running the fleet
Most startups fall into the same traps:
- Collecting every metric the firmware can emit
- Designing for the engineers who built the sensor rather than the operator reading the screen
- Hiding when data was last updated
- Treating the dashboard as an afterthought once firmware and cloud architecture are "done"
In practice, one hardware product often needs several dashboard types for different roles:
| Dashboard type | Core question it answers |
|---|---|
| Monitoring | Is this device healthy right now? |
| Analytical | What changed, and across how many devices? |
| Operational/control | What action should an authorised user take? |
| Executive/summary | Which fleet outcomes need attention today? |
Use this framing as a practical way to scope what each screen is for, not as a formal industry standard.
Design the Information Architecture Around User Decisions
Before any visual design, map who uses the dashboard and why. A founder checking fleet health once a day has nothing in common with a field technician troubleshooting one unit in direct sunlight.
Map Roles Before Mapping Screens
Typical hardware startup roles include:
- Founders and executives: fleet-level trends and outcomes, not raw logs
- Operations teams: anomaly detection and clear routing to the right owner
- Field technicians: device-level diagnostics on a phone, often outdoors
- Customer support: enough context to answer "why is my device offline?"
- End customers: simple status and history, not calibration data
Each role needs a different depth of detail and a different set of controls. Designing one screen for all of them usually satisfies none of them.

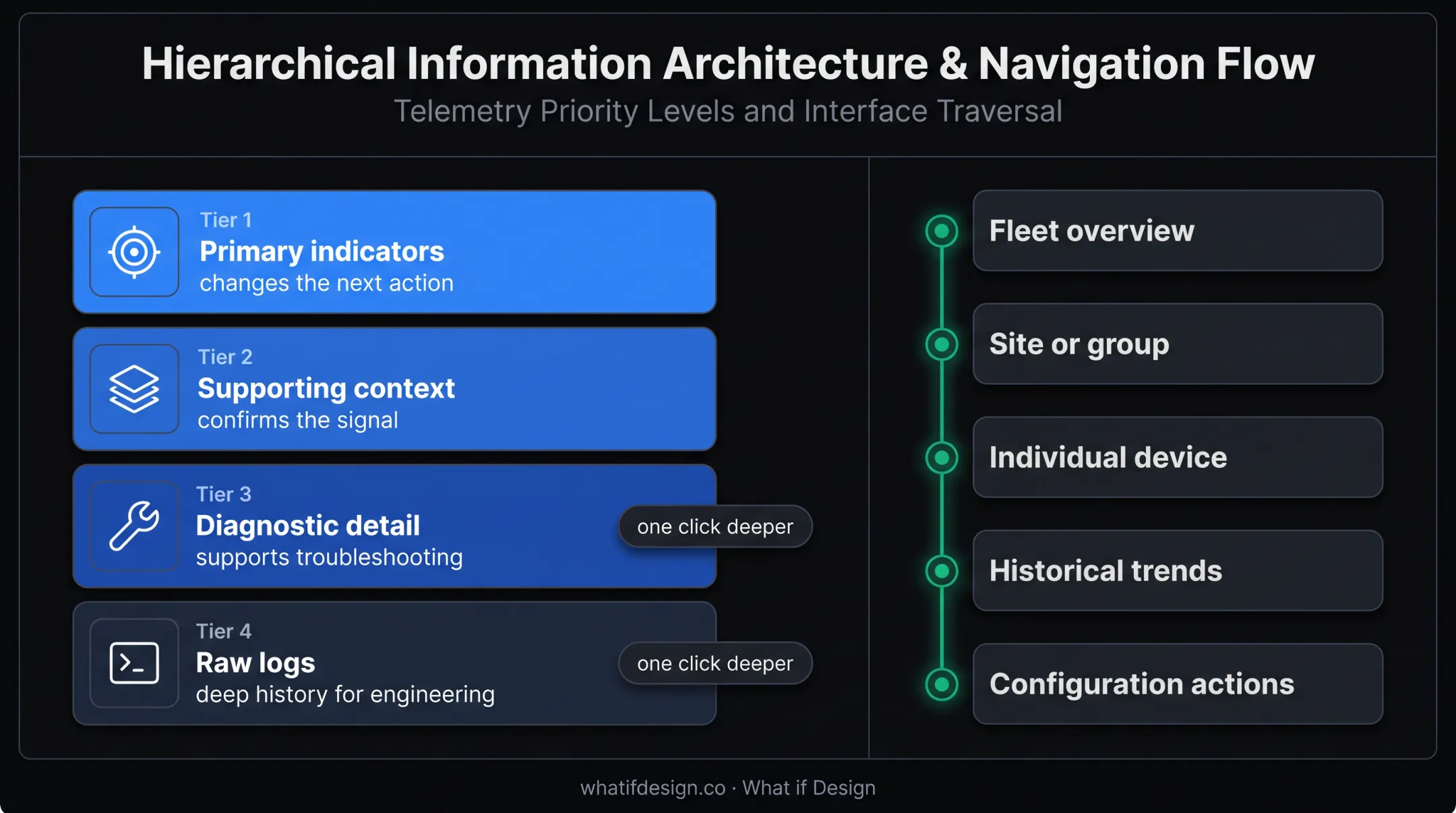

Build a Metric Hierarchy
Separate metrics into tiers and keep the first screen on the primary tier only:
- Primary indicators: what changes the user's next action
- Supporting context: enough detail to confirm the signal
- Diagnostic detail: device-level data for troubleshooting
- Raw logs: deep history for engineering, not daily use
Everything below the primary tier should live one click deeper. That is where progressive disclosure matters. Structure navigation so users move from fleet overview to site or group, then individual device, historical trends, event history, and configuration actions.
A practical test: can someone go from a fleet-level anomaly to the device causing it in two or three clicks?
Your IA also has to cover real operating states, not only the happy path:
- Normal operation
- Threshold breach
- Device offline
- Stale telemetry
- Low battery
- Sensor fault
- Maintenance mode
- Firmware update in progress
- Genuinely unknown data
If the architecture has no place for "we don't know," users will assume the worst or ignore the dashboard.
Run a short discovery exercise before visual design starts:
- Stakeholder interviews
- Workflow mapping
- A ranking pass that scores each metric by user value, urgency, and cost of missing it
For every critical alert, write the response it should trigger. A dashboard that flags a problem without pointing to an action is incomplete.
What if Design helps climate-tech and deep-tech hardware teams turn complex sensor data into an information architecture that both technical and non-technical users can navigate.
Essential UX and Interface Principles for IoT Dashboard Design
Once the architecture is set, the interface itself has to earn trust fast.
Match the Chart to the Question
- Trend charts for change over time (battery degradation, temperature drift)
- Tables for comparison and filtering across many devices
- Maps for location-based fleets
- Status cards for an immediate health summary
- Event timelines for incident investigation
Picking the wrong visualisation forces users to do mental math the dashboard should be doing for them.
Make Data Freshness Visible
Show the timestamp, the update interval, and whether a reading is live, delayed, or estimated. A dashboard that silently shows a reading from three hours ago as if it were current will eventually drive a wrong decision and permanently lose the user's trust.
Design Alerts as Workflows, Not Just Notifications
An alert should answer six questions at a glance:
- What happened and why it matters
- Which device or site is affected
- When it started and how severe it is
- What to do next

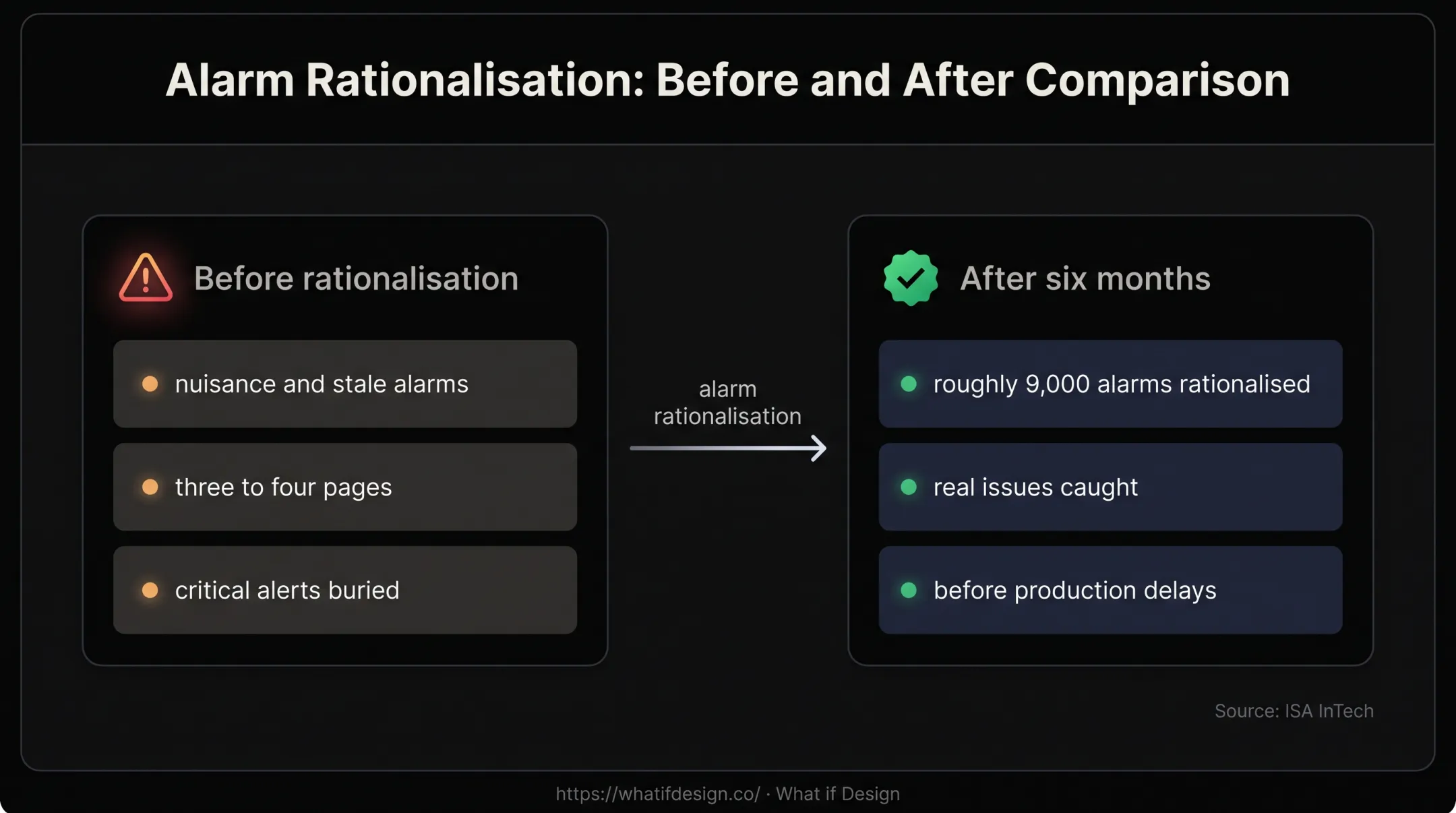

A chemical plant documented in an ISA feature on alarm management had nuisance and stale alarms filling three to four pages of operators' summaries. Some "critical" alerts weren't actually critical, while real ones got buried. The plant rationalised roughly 9,000 alarms over six months, and operators could finally catch real issues before they became production delays.
The lesson for hardware startups: more alerts are not more useful. Prioritise by consequence, not by what the sensor happened to measure.
Avoid Misleading Colour Semantics
Never rely on colour alone. Pair red, amber, or green with a label, icon, or shape so a colour-blind user or a screen reader gets the same information.
Separate Monitoring from Control
For command-enabled hardware, treat every consequential action as a controlled workflow:
- Confirm the action before it executes
- Show command status in real time
- Record the outcome
- Offer a clear way to recover or roll back
Design for Where the Dashboard Will Actually Be Used
Control-room monitors, mobile screens in direct sunlight, gloved hands, intermittent 3G: all of these change what "usable" means. Build on a reusable design system so new devices, metrics, and roles don't require redesigning every screen from scratch.
Technical and Product Requirements Behind a Reliable Dashboard

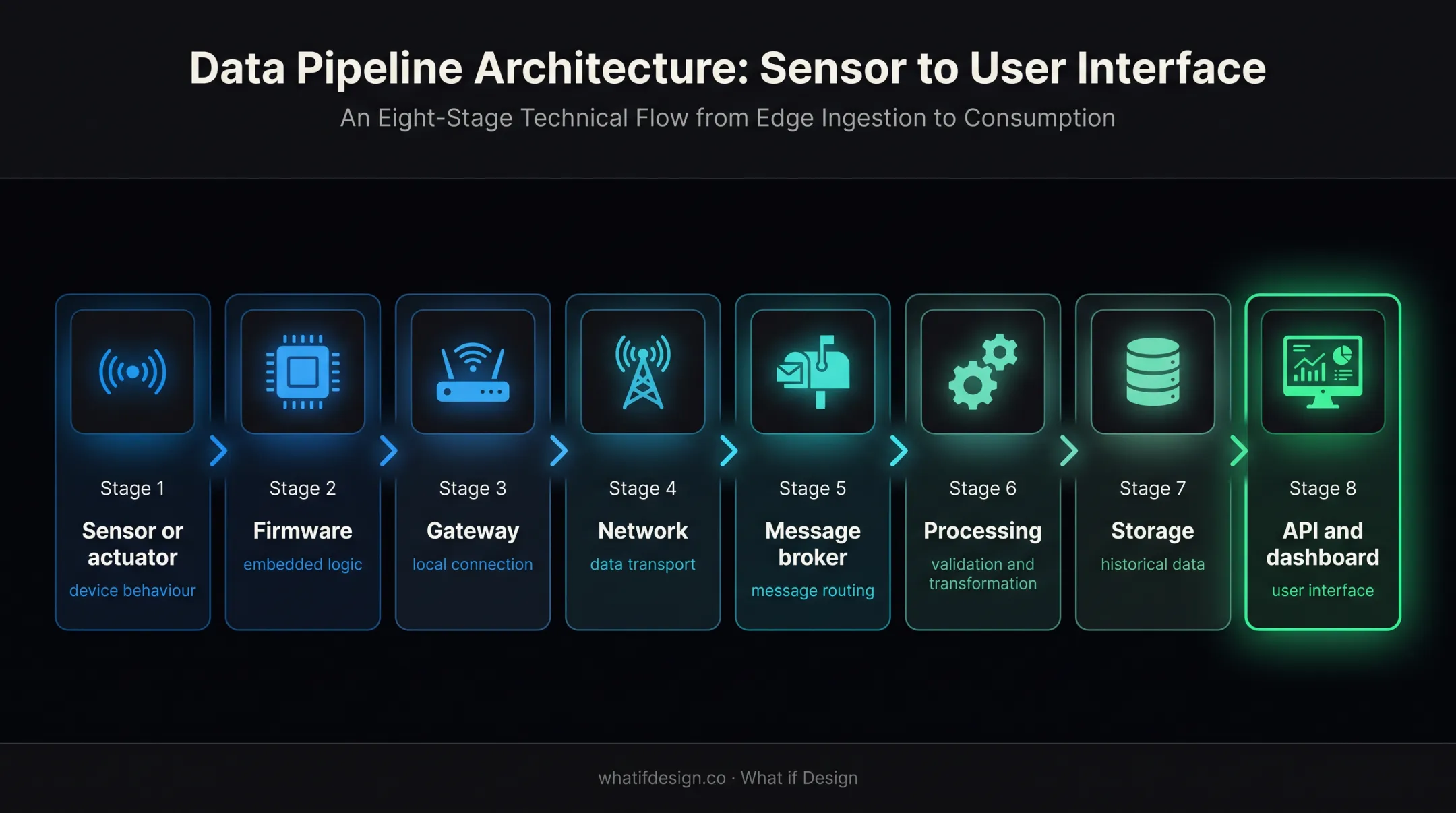

A trustworthy dashboard sits on top of a trustworthy pipeline: sensor or actuator → firmware → gateway → network → message broker → processing → storage → API → dashboard. Decide early which layer owns validation, transformation, aggregation, and alert logic. Pushing all of that into the frontend creates a brittle, slow interface.
Each data type needs its own interaction model:
- Live telemetry: near-real-time, short retention in the UI
- Historical data: aggregated for trend charts
- Derived metrics: clearly labelled as calculated, not raw
- Device metadata, events, alarms, and commands: each with distinct states and permissions
Plan for Scale Before You Need It
As device count grows, raw time-series data becomes unusable without aggregation, downsampling, pagination, virtualised tables, and caching. Decide now whether recent data stays raw (for investigation) while older data gets summarised (for trend analysis). Retrofitting this later is expensive.
Treat Connectivity as a UX Problem
Design explicit behaviour for delayed messages, duplicate readings, out-of-order events, offline devices, reconnection, and locally buffered data that syncs later. If the interface doesn't account for these, users will mistake a connectivity gap for a device failure and call support.
Security and Governance Aren't Optional
For Indian hardware startups specifically, CERT-In's 2022 directions require covered entities to report specified cyber incidents within six hours and retain ICT system logs securely for a rolling 180 days within India.
That's a security-log obligation, not a rule requiring you to retain every sensor reading forever. Treat security logs, device telemetry, and personally identifiable data as three separate policies, not one blanket retention setting.
Build in:
- Role-based access
- Tenant separation for multi-customer deployments
- Encrypted communication
- Audit logs for who issued which command and when
Choose the Right Scope and Tooling for an IoT Dashboard MVP
Most startups choose between three paths:
| Approach | Speed | Flexibility | Ownership |
|---|---|---|---|
| Configurable IoT platform/template | Fastest | Limited to vendor's widgets | Low (dependent on vendor roadmap) |
| Custom frontend on existing backend | Moderate | High for UI, constrained by backend | Medium |
| Fully custom product | Slowest | Highest | Full (with full maintenance load) |
None of these is universally correct. A platform gets you to a working demo fastest, but you inherit its limitations and its vendor's business decisions. A fully custom build gives you differentiation, but every edge case (stale data, offline states, alert logic) becomes your team's responsibility to build and maintain.

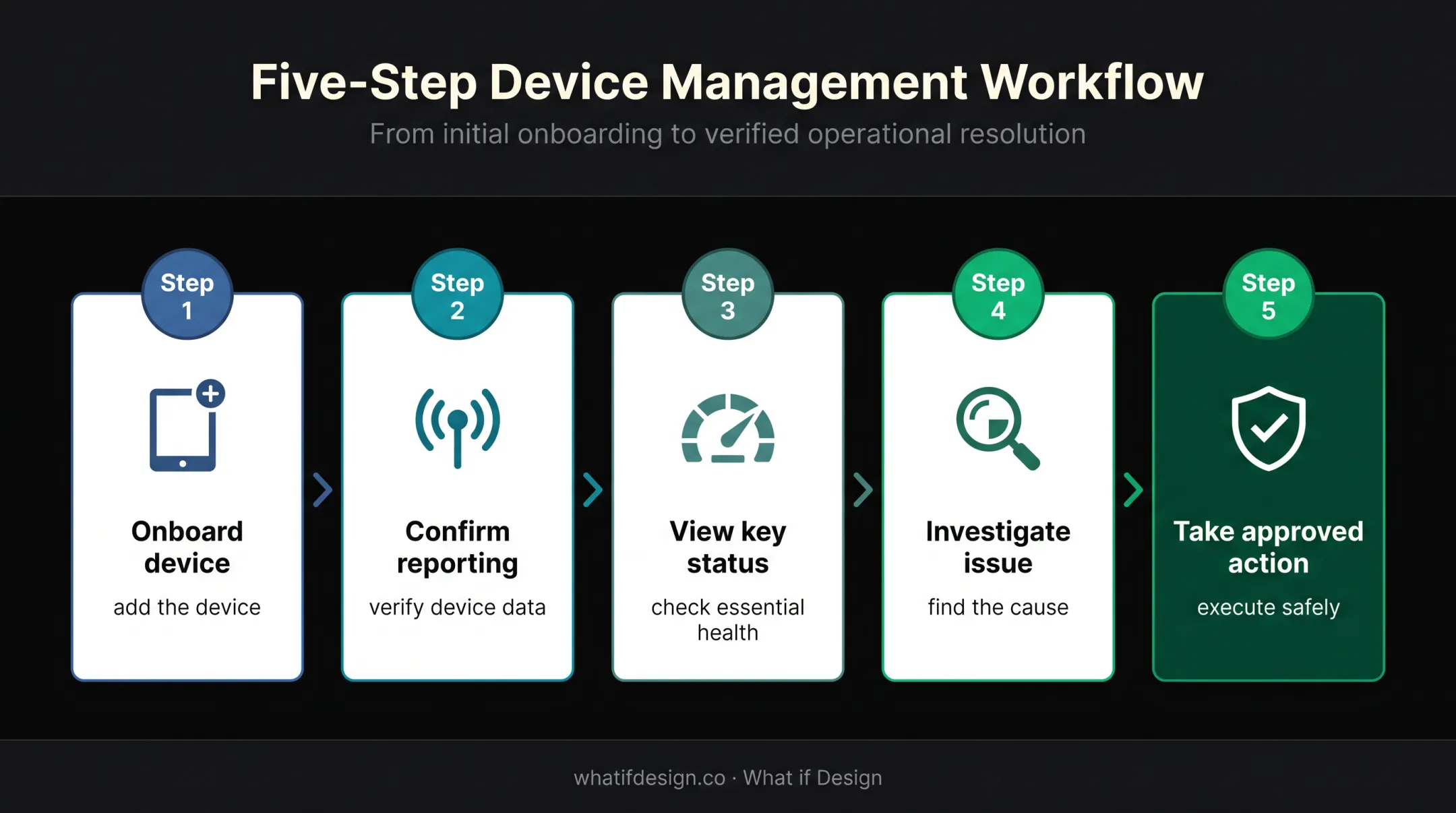

Define your MVP around one complete workflow, not a feature list: onboard a device, confirm it's reporting, view its key status, investigate an issue, and take an approved action.
For an EV battery management platform, What if Design's Batteryze project took this exact approach. The team defined information architecture and user flows for fleet owners and battery insurers before building wireframes and a pilot-scale MVP that tracked daily performance data for real deployment.
Leave out of version one:
- Rarely used visualisations
- Forecasting or predictive features
- Heavy customisation options
- Admin controls that don't serve the first customer workflow
Before picking a platform, document your assumptions:
- Device count and update frequency
- User roles and data retention needs
- Connectivity reliability and screen sizes
- Whether multi-tenant support is coming soon
These assumptions, not vendor marketing, should drive the decision.
Validate, Launch, and Evolve the Dashboard
Test the prototype against scenarios that matter, not just a clean demo:
- Normal operation — can the user confirm everything's fine quickly?
- A critical alert — does the user understand what to do?
- Missing or stale data — is this distinguishable from a real fault?
- An offline device — does the interface explain why, not just show a blank?
- A fleet-wide issue — can the user drill from overview to root cause?
- A failed command — is the failure visible and recoverable?
Measure task completion, time to find critical information, and where users hesitate or ask for help.
Usability research consistently links investment in user-centred design to strong returns. Nielsen Norman Group research puts the ROI at 10 to 100 times the investment, a clear case for testing before heavy engineering spend.
Run the design against real or simulated telemetry, not static mock-ups. This is where chart overcrowding, rapid value swings, timezone confusion, and long device names actually surface.
Build a feedback loop connecting dashboard usage, support tickets, and device reliability data. Schedule a design review at each major milestone:
- Prototype
- Pilot
- First commercial release
- Scale-up
Conclusion: Build the Dashboard Around Trust and Action
A good IoT dashboard does more than visualise telemetry. It helps the right person understand what's happening, decide what matters, and act on it safely.
Build around these principles:
- Start with user decisions
- Prioritise ruthlessly
- Expose data quality honestly
- Design for failure states
- Validate against real hardware behaviour before scaling the build
If your team is translating complex hardware, climate-tech, or deep-tech data into something customers and operators can actually trust, that is the kind of problem What if Design works on: strategic product UX for climate-tech, green-tech, EV, and deep-tech products.
Frequently Asked Questions
What is an IoT dashboard?
An IoT dashboard is an interface for monitoring, analysing, and sometimes controlling connected devices using live, historical, and event data. It combines device health, alerts, and trends in one place.
What are the four types of dashboards?
Monitoring, analytical, operational/control, and executive or strategic dashboards are common categories, though they're a design taxonomy rather than a formal standard. A single IoT product often combines all four.
What should an IoT dashboard include?
It should show key status metrics, device and connectivity states, historical trends, alerts, event logs, and controls where relevant. Permissions and clear data-freshness indicators matter just as much as the charts themselves.
How do you design an IoT dashboard for a hardware startup?
Start with user workflows and device states, then prioritise metrics, build the information architecture, prototype, and test against realistic telemetry before committing to full development. Stage the build in phases rather than launching everything at once.
What is the difference between an IoT dashboard and an admin dashboard?
An IoT dashboard focuses on connected-device telemetry, events, and controls. An admin dashboard typically manages users, records, and settings — business administration rather than device behaviour.
