As energy products stretch across distributed energy resources, batteries, EV charging, renewable generation, buildings, grids, and carbon accounting, the stakes of getting this layer wrong keep rising. A poorly structured dashboard can bury an urgent fault inside a wall of green numbers, or flood an operator with so many metrics that nothing stands out at all.
This article walks through 12 design patterns found in real climate tech products — from asset performance platforms to building energy managers — and explains what each one solves, and what to check before you borrow it for your own product.
Key Takeaways
- Start with the user's decision, not the available data fields.
- Combine live status, historical context, comparisons, alerts, and recommended actions in one view.
- Build role-based views so operators, executives, and customers see what matters to them.
- Treat product examples as reusable interaction patterns, not visual templates to copy.
- Earn trust with clear units, timestamps, data quality cues, and accessible visuals.
What Is an Energy Dashboard and Why Does Design Matter?
An energy dashboard brings together energy, operational, financial, environmental, and asset data in one interface so users can monitor conditions, investigate changes, and decide what to do next.
The U.S. Department of Energy describes energy management information systems as software that monitors, analyses, and controls building energy use, pulling from meters, weather feeds, distributed energy resources, and EV chargers.

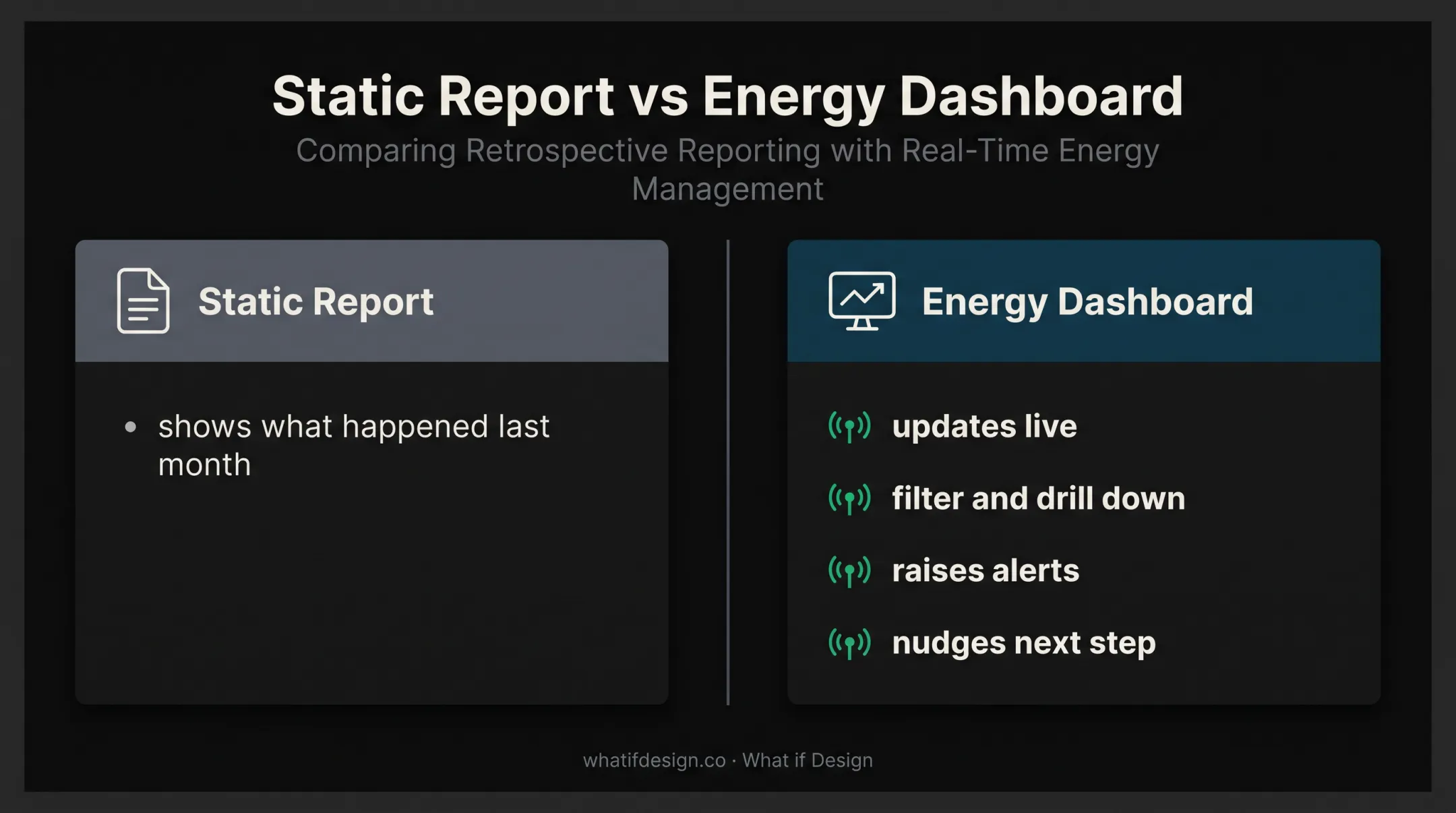

That definition matters because it draws a line between a dashboard and a static report. A report tells you what happened last month. A dashboard updates live, lets you filter and drill down, raises alerts, and, ideally, nudges you toward a next step.
Different users ask different questions of the same data:
- Facility and energy operators want to know what needs attention right now
- Grid or asset managers want fleet-wide visibility with the ability to zoom into one unit
- Sustainability teams want progress against targets and defensible numbers for reporting
- Executives and investors want trends and outcomes, not raw telemetry
- End customers want to understand their own bill, usage, or environmental impact
When design doesn't account for these differences, the usual failures show up:
- Metric overload and unclear baselines
- Alarm fatigue from constant low-value alerts
- False precision on noisy or estimated figures
- Colour-only status indicators that fail colour-blind users
- Problem flags with no suggested next step
Every pattern below gets judged against the same criteria: clarity of purpose, information hierarchy, actionable insight, trustworthiness, scalability, and fit with how often the user actually needs to check in.
12 Energy Dashboard Design Patterns
These are reusable interaction patterns, not fixed visual templates. Each one below is tied to a real climate tech product feature. Before applying any of them, check what can transfer to your product and what depends on context you don't share — scale, sensor coverage, regulatory requirements, or user expertise.
Orient Users With Immediate Context
Pattern 1: The Role-Based Starting View
The first screen a user sees should match the decision they're there to make, not a generic overview.
Power Factors' Unity APM structures reporting around asset management, operations and maintenance, and executive audiences, with a dedicated executive overview for portfolio-level solar, wind, and storage performance. Siemens' Building X Energy Manager similarly adapts by role, letting users drill from real-time conditions down to the submeter.
We ran into this exact trade-off building Batteryze, a battery health platform that serves two very different audiences: fleet owners tracking day-to-day asset condition, and insurers assessing risk exposure across a portfolio. Both needed the same underlying data, but completely different starting points.
The trade-off to manage:
- Personalised views reduce noise but can fragment a shared understanding of the system
- Shared dashboards keep everyone aligned but risk overwhelming less technical users
Pattern 2: The System-at-a-Glance Status Layer
Before anyone investigates anything, they need a fast answer to "is everything okay?" SMA's Sunny Portal shows live system status, device-level health, PV yield, and a rollup across every registered site in one account. Power Factors pairs this with its executive overview, condensing solar, wind, and storage performance into one unified read.
Good status layers share three traits:
- Status labels with severity, not just raw numbers (operating, degraded, offline)
- Visible timestamps, so users know how current the data is
- A clear path from summary to detail, so a glance can turn into an investigation in one click
Pattern 3: The Target-vs-Actual Scorecard
A number means little without something to compare it against. Microsoft's Dynamics 365 Business Central Sustainability module includes a Realized Emissions vs Target report that shows actual emissions against scorecard goals. Siemens' Building X Energy Manager applies the same logic to consumption, cost, and emissions against defined budgets.
Batteryze uses a version of this at the asset level: state of charge and state of health are shown as percentages, but also labelled against a threshold: "84% SoH, Good" tells a fleet manager far more than the raw percentage alone. The risk here is implying one number tells the whole story; a scorecard should always invite a closer look, not replace it.
Help Users Compare and Interpret Performance
Pattern 4: The Time-Series Trend With Meaningful Context
Trends reveal what single snapshots can't: seasonality, peak demand periods, gradual degradation, or a change in behaviour. EnergyCAP's consumption-trend charts overlay temperature and target or average lines so a spike reads as "hotter than usual" rather than an unexplained anomaly. Siemens' Building X dashboard supports year-over-year comparisons through a time filter across multiple sites.
Batteryze applies this to battery ageing, charting health values over time against total lifecycle — a pack at 140 of 1,200 cycles tells a very different story on a trend line than as a static number.
What to get right:
- Let users adjust time range and granularity rather than locking a single view
- Support zooming without losing the surrounding context
- Add annotations for known events (maintenance, firmware updates, outages)
Pattern 5: The Benchmark and Baseline View
Comparing a site, asset, or period only works if the comparison is fair. ENERGY STAR's Portfolio Manager scores buildings from 1 to 100 against similar buildings, weather-normalised so a hot year in one region doesn't unfairly penalise a building's score; 50 represents median performance.
The EPA's building-performance guidance recommends weather-normalised site energy-use intensity specifically because raw consumption numbers mislead across climates.
Label the baseline and the methodology plainly. A user comparing their site to "the portfolio average" needs to know what's in that average and how recently it was calculated.
Pattern 6: The Energy-Flow or Sankey-Style View
Some systems genuinely need to show movement, not just magnitude. Siemens' Building X documentation specifies Sankey diagrams for submetered flows from campus down to room level, paired with time-series views of the same data. SMA's Sunny Portal shows a comparable real-time energy balance between sources, consumption, and flows.
Flow visualisation earns its complexity when a user genuinely needs to trace where energy goes — generation to storage to load to export, for instance. For simpler questions ("how much did we use this month?"), a chart or table is faster to read and easier to build.
Diagnose Problems and Build Trust
Pattern 7: The Hierarchy-Aware Alert Centre
Alerts without hierarchy become noise, and noise gets ignored. The consequences of that failure are well documented: the 2004 investigation into the August 2003 U.S.-Canada blackout found that a utility's energy management system alarm function failed, and operators lost situational awareness for over an hour even as valid data kept streaming in.
Available data didn't help — the alert layer did not surface it.
Schneider Electric's EcoStruxure Power Monitoring Expert assigns alarms a configurable priority band — high, medium, low, and informational — so operators aren't treating every alert equally. Driivz's EV-charging platform logs alerts and lets operators resolve some issues remotely from a single portal.
A functioning alert centre needs:
- Clear severity levels, not a flat list
- Deduplication, so one fault doesn't generate ten tickets
- Defined ownership and an escalation path
- A real distinction between an alert ("something is wrong") and an insight ("here's likely why")
Pattern 8: The Anomaly Explanation Panel
A good anomaly panel moves beyond "something changed" toward "here's why, probably." Power Factors' Unity APM breaks performance losses down by asset and event through interactive waterfalls, and its REMI feature surfaces plain-language context for underperformance. AlsoEnergy's Rule Tool lets a user jump from an automated diagnostic flag straight into the relevant analytics page to investigate missing or unexpected data.
Keep algorithmic suggestions clearly labelled as suggestions. A dashboard that presents a probable cause with the same confidence as a verified one erodes trust the first time it's wrong.
Pattern 9: Data Quality and Confidence Indicators
Energy, carbon, and financial decisions depend on numbers that are rarely 100% complete. Unity APM flags bad or missing readings, fills gaps with documented logic, and keeps an audit trail from a reported KPI back to the raw sensor input. AlsoEnergy's diagnostics check communications, configuration, and data ranges before a number ever reaches a chart.
Without this layer, users can't tell a confirmed reading from an estimate — and in carbon reporting especially, that distinction matters for anyone relying on the number downstream.
Turn Insight Into Action and Long-Term Decisions
Pattern 10: The Forecast-to-Action Workflow
A forecast only earns its place on a dashboard if it connects to a decision. Schneider Electric's EcoStruxure Microgrid Advisor forecasts generation and demand, then uses that forecast to decide when to consume, produce, or store energy and to control on-site loads directly. ChargePoint's fleet software applies similar logic to EV charging, pairing real-time vehicle status with automated charging schedules.
The interface needs to show its assumptions, the timing window the forecast covers, and, critically, how much control the user retains before the system acts automatically.
Pattern 11: The Drill-Down From Portfolio to Asset
Fleet-level and single-asset questions require different depths of the same data, and users shouldn't lose their place moving between them. Unity APM explicitly supports drilling from a renewable fleet view down to a single inverter or turbine. AlsoEnergy's Rule Tool works similarly in reverse, letting a diagnostic flag lead straight into the detailed analytics page behind it.
This pattern depends on:
- Consistent asset identifiers across every level
- Aggregation logic that's transparent, not a black box
- Preserved filters and context as users move deeper
Pattern 12: The Impact and ROI Narrative
Operational changes only matter to most stakeholders once they're translated into cost, carbon, or resilience terms. EnergyCAP's cost-avoidance feature compares current bills against an adjusted baseline year — correcting for weather, billing period, and floor area changes — following the IPMVP Whole Facility Method.
We built a version of this narrative into Shine Billing, a solar data platform for multi-family properties. It presents lifetime energy produced, lifetime energy consumed, and lifetime net operating income side by side.
One property's dashboard showed nearly 49,745 kWh of lifetime consumption against its production figures: numbers that only become meaningful once framed against a baseline and a time period.
Always show your assumptions, your comparison period, and any caveats. An impact number without its method invites scepticism, not trust.

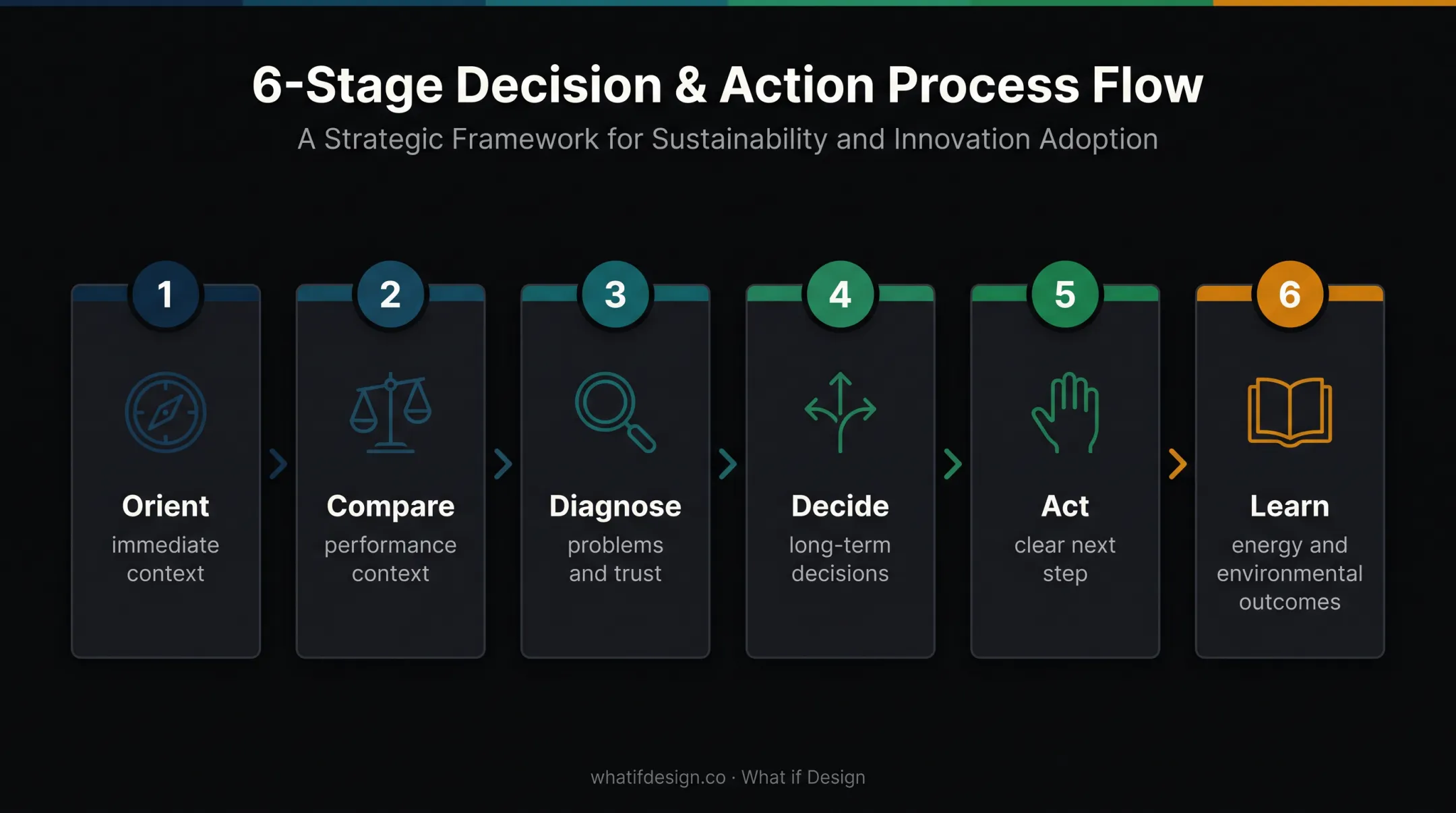

Across all 12 patterns, the sequence is the same: orient, compare, diagnose, decide, act, and learn. A dashboard missing any one of these steps leaves the user stuck — either staring at numbers with no sense of what's normal, or facing a problem with no path to resolving it.

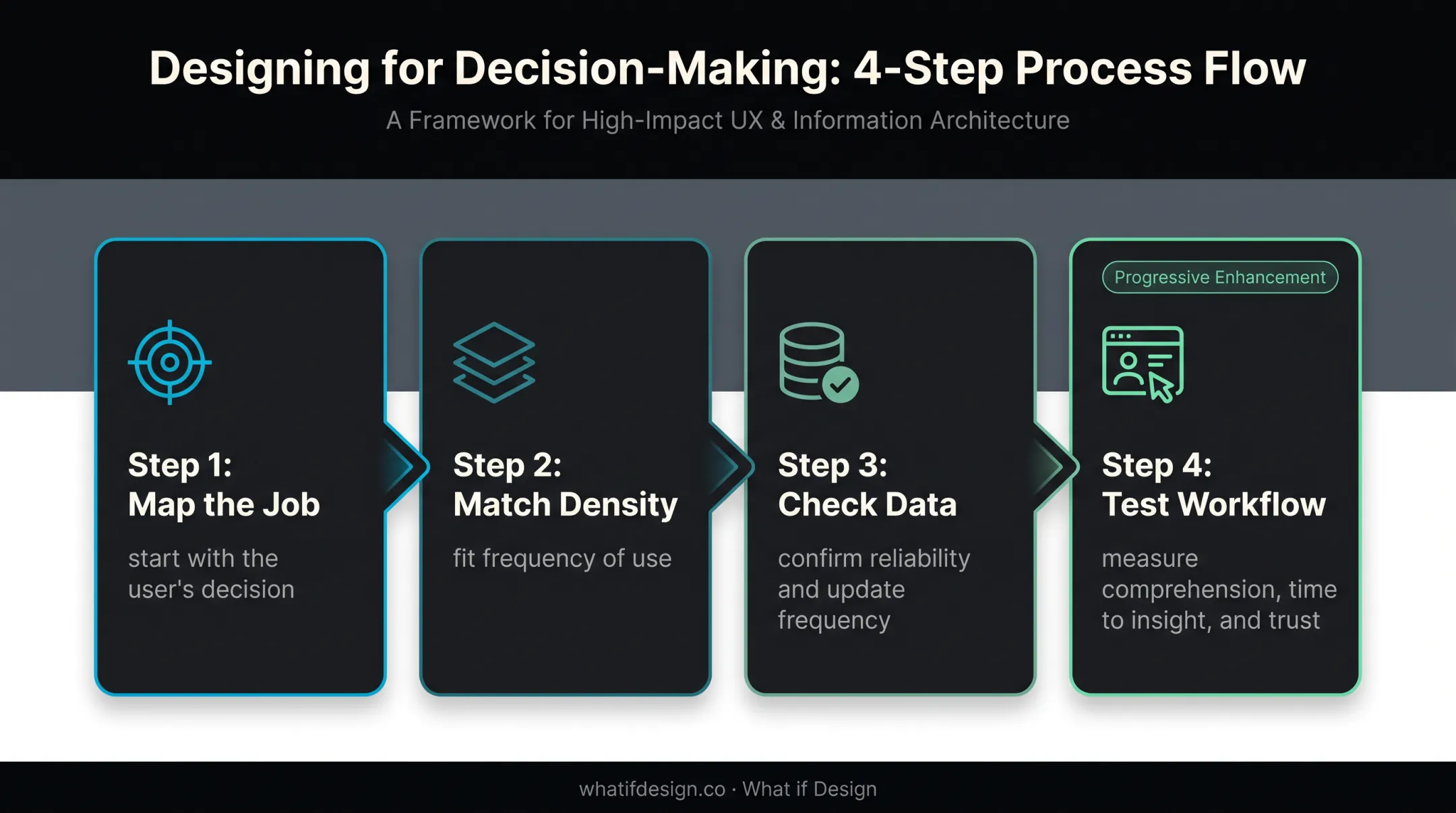

How to Choose the Right Patterns
The right pattern depends on the user's decision, your product's maturity, data reliability, and operational risk: not on which dashboard looks most impressive in a demo.
Map patterns to the underlying job:
- Monitoring current conditions → status layer, role-based views
- Investigating anomalies → anomaly panel, data quality indicators
- Optimising assets → benchmark views, forecast-to-action workflows
- Reporting progress → target-vs-actual scorecards, impact narratives
- Taking an operational action → alert centre, drill-down navigation
Match density to frequency. Someone checking a dashboard ten times a day needs a glanceable view; someone reviewing monthly can handle richer analysis. High-risk, infrequent decisions deserve a guided workflow, not a wall of charts.
Before adding any advanced feature, confirm the data is ready:
- Source reliability and update frequency
- Identity resolution across assets
- Historical depth
- Whether a forecast or recommendation is trustworthy enough to show
A beautifully designed forecast panel on patchy sensor data erodes trust faster than no forecast at all.
Decide what belongs in version one versus what stays a progressive enhancement, and test with representative users through task-based prototypes, measuring comprehension, time to insight, and whether they'd actually trust the resulting decision.
That selection work is most of what our team does day to day. Tejas, our UX lead, designs battery management and fleet platforms where every screen is a business decision in disguise.
Akhila, our lead strategist, has worked with DOE- and ARPA-E-backed teams in grid interconnection and green hydrogen—where the science has to be understood before it can be designed around. What if Design helps climate tech teams make that translation: complex energy and hard-tech systems into dashboards people trust.
What to Check Before Finalising the Design
A short list of checks before you ship:
- Home screen restraint. Confirm each prominent element supports a defined decision; push diagnostic detail into progressive disclosure.
- Colour alone is not enough for status. Pair colour with text labels, icons, or patterns so colour-blind users can read severity. WCAG 2.2 requires at least 3:1 contrast for graphical information needed to understand content.
- Separate real-time, estimated, forecast, and historical values. Show timestamps, units, update status, and data-quality cues for each.
- Every alert needs an owner and next step. Review thresholds, grouping, escalation paths, and whether a notification can be safely muted.
- Check context before reusing a pattern. Scale, regulatory requirements, user expertise, and sensor coverage all change whether a pattern transfers cleanly.
- Validate the full workflow, not just the chart. Test data loading, filtering, drill-down, export, and recovery from missing or conflicting data.
Conclusion
An effective energy dashboard turns complex climate data into decisions people can act on. The principle underneath all 12 patterns is consistent: start with user intent, apply patterns selectively based on the decision at hand, and keep context, uncertainty, and next steps visible at every level.
Get this right, and dashboard design stops being a cosmetic layer. It becomes the reason users trust the product enough to act on what it tells them. That trust is what turns climate data into energy and environmental outcomes you can actually deliver.
Frequently Asked Questions
What metrics should an energy dashboard display?
It depends on the product and user. Common categories include consumption, generation, demand, cost, carbon, asset health, progress against targets, and active alerts.
How do I design an energy dashboard for different user roles?
Build role-based landing views or progressive disclosure for operators, analysts, executives, and customers. Keep shared metric definitions and a single source of truth across all views.
Should an energy dashboard show real-time data or historical trends?
Both. Effective dashboards combine current status with historical context, forecasts, and comparison periods, so users understand what's happening now and why it matters.
How can I make an energy dashboard actionable?
Connect every insight to a clear next step : prioritised alerts, plain-language explanations, defined ownership, and confirmation once an action is complete.
What makes an energy dashboard trustworthy?
Show clear units, timestamps, data provenance, and estimates versus confirmed readings. Pair that with transparent calculations, accessible visuals, and honest handling of missing data.
What are the most common energy dashboard design mistakes?
Common failures include data overload, weak hierarchy, unexplained metrics, and alarm fatigue. Colour-only status, false precision, weak accessibility, and skipping real-user testing also hurt trust.
