Complexity compounds fast. Add multiple attributes, shifting data states, role-based permissions, mixed units, thresholds, long identifiers, and different user types reading the same table for different reasons, and a simple grid turns into a navigation problem. NN/g's research on complex applications found that organisation and sorting that ignore expert workflows create clutter and confusion rather than clarity (NN/g, 2020).
This article works backwards from user tasks and decision risk, then into structure, interactions, accessibility, and the engineering constraints that make a table actually usable at scale.
Key Takeaways
- Design around the decisions users make, not every field sitting in the database.
- Use separate tables for scanning, investigation, operations, and data entry, each with its own density and controls.
- Keep units, timestamps, status definitions, and active filters visible at all times.
- Treat the table as a reusable system with shared cell types, states, accessibility rules, and performance limits.
Start with the job the table needs to support
Before picking a single column, figure out what decision the table supports. Tables work when users need to scan many records, compare shared attributes, spot exceptions, or act across a set of records. If the content is more visual or qualitative (a project summary, a narrative update) a card or chart usually communicates it better.
Most B2B tables serve four recurring jobs:
- Finding records that meet a condition (overdue contracts, assets below a threshold)
- Comparing records or values side by side (vendor scores, battery health across a fleet)
- Viewing or editing a single record in depth
- Acting on one record or many at once (approve, assign, archive)
Match the table mode to the workflow
The same dataset needs a different layout depending on what the user is doing with it:
- Overview tables surface status, ownership, and recency — built for a quick scan, not deep analysis.
- Investigation tables prioritise comparison, filtering, and drill-down, useful when reviewing emissions data or validating a technical reading against a source.
- Operations tables are built around queues, urgency, and bulk actions — think workflow exceptions that need an assignee and a deadline.
- Data-entry grids need fast keyboard movement, inline validation, and forgiving error recovery.

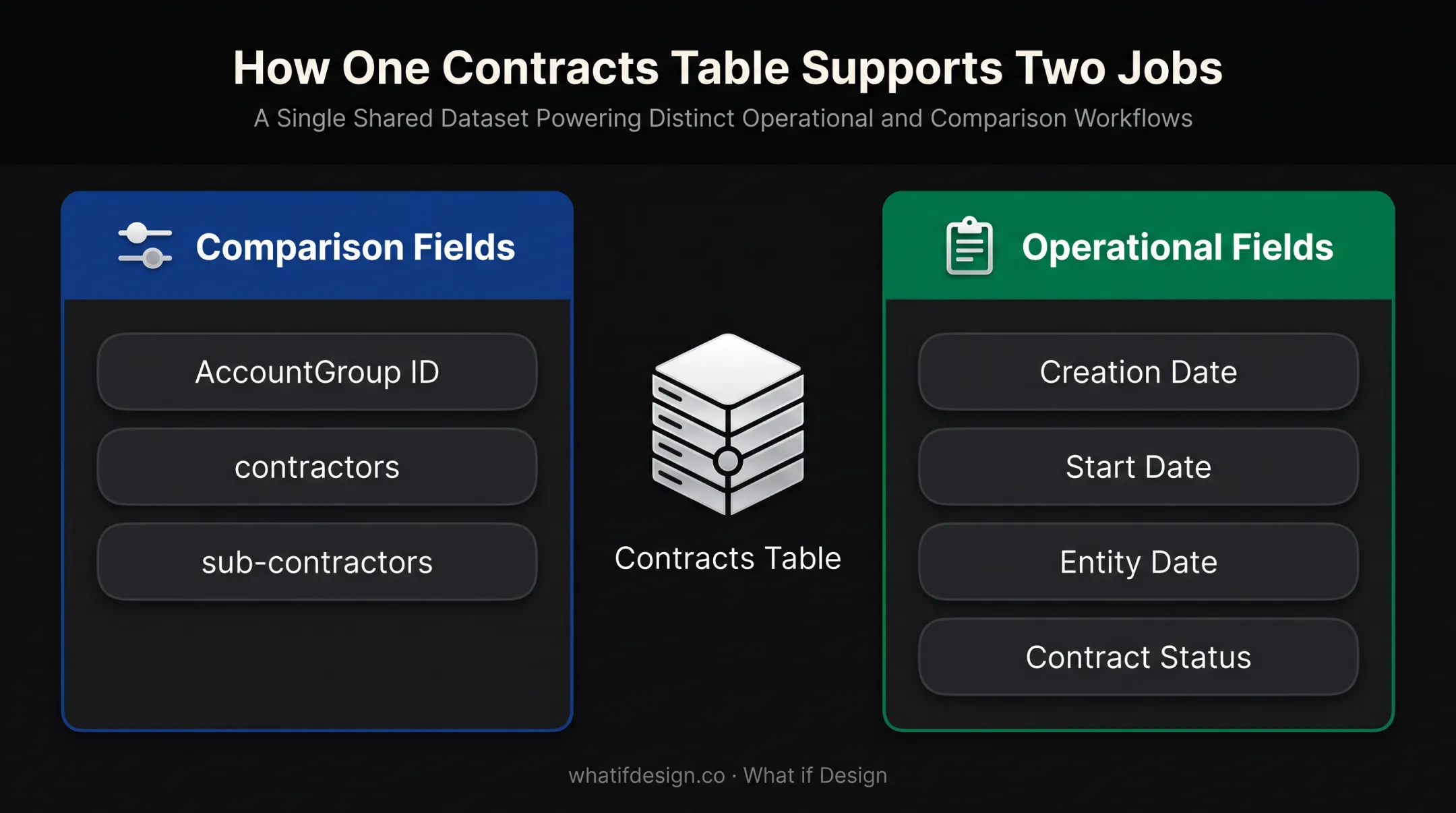

We saw this on an Asset Portfolio Management system for the Ministry of Health of Saudi Arabia. A single "Contracts" table had to support comparison fields (AccountGroup ID, contractors, sub-contractors) and operational fields (Creation Date, Start Date, Entity Date, Contract Status). One table, two jobs: the layout had to earn its place for both.
Before locking in columns, map the job in plain terms:
- Who reads the table
- What action follows a row
- How often the task runs
- What a misread costs
Keep identifiers and decision-critical fields adjacent; push secondary metadata into a detail view. Validate with workflow interviews and usability tests on real records, not sanitised demo data, and watch how teams already handle the same decisions in a spreadsheet. That is usually where the real requirements live.
Structure the table so complex data remains understandable
A complex B2B table has a consistent anatomy. Miss one piece and the table feels incomplete, even when the data is correct:
- Page context, title, and scope
- Search, filters, column headers, and body rows
- Selection controls, row actions, and a path to detail
- Totals or status summaries
- Pagination or loading states
Make every row and column legible
- Use a human-readable primary identifier — a project name or serial number, not an opaque system ID.
- Group related attributes together, ordered by the task sequence, not the database schema.
- Align text left, numbers right, and keep dates, currencies, and units consistent down the column.
- Truncate carefully, with an accessible way to see the full value (tooltip or detail link).
- Define how missing, estimated, stale, or not-applicable values display — a blank cell means something different from "no data available."
Carry the technical context that generic tables skip
Technical B2B tables fail when they drop the context experts need: measurement units, data freshness, source, confidence level, calculation method, version, and threshold definitions.
A battery health score of 82% means nothing without the calculation method behind it. That is the nuance we designed for on Batteryze, a battery health dashboard tracking material value and degradation across a fleet.
Visual encoding (badges, icons, colour) should reinforce a text label, never replace it. Status indicators need a word attached, especially when users must separate "pending," "verified," and "unavailable" at a glance.
For wide, dense datasets:
- Freeze the primary identifier and header row
- Let users hide or reorder secondary columns
- Keep a clear visual divider between frozen and scrollable content
- Push rarely compared attributes into a detail panel
Test the layout against realistic edge cases in the design phase: long names, extreme values, empty fields, conflicting statuses, and permission-limited rows. A table that looks clean with five sample rows often breaks under real data.
Design interactions around real B2B workflows

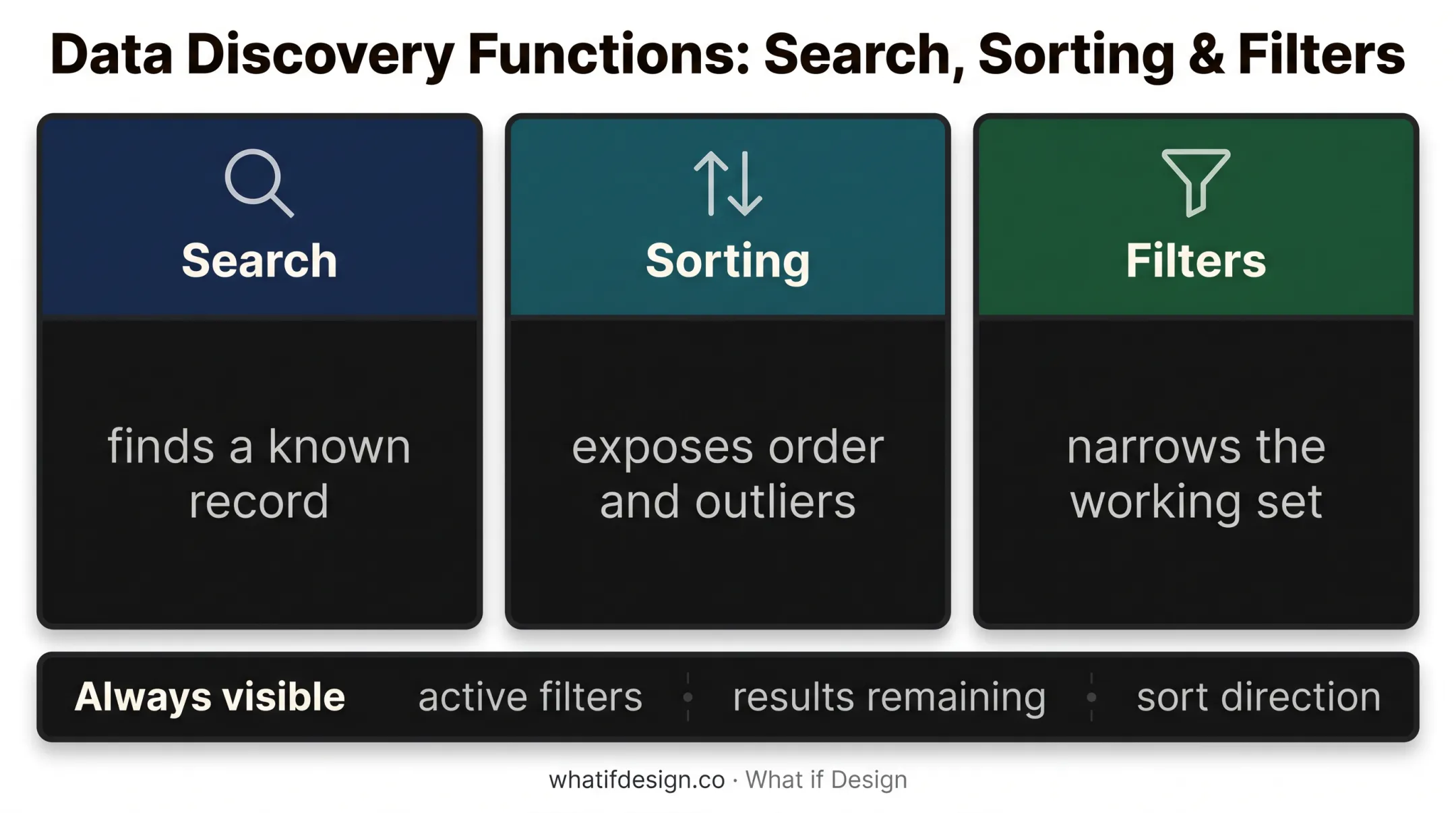

Search, sorting, and filtering do different jobs. Search finds a known record. Sorting exposes order and outliers. Filters narrow the working set. Users need to see, at all times, which filters are active, how many results remain, and which direction the sort runs.
Filtering patterns that scale
- Global search for known identifiers
- Column-level filters for quick narrowing
- Faceted filters for multi-attribute queries
- Range filters for thresholds and dates
- Saved views for recurring checks
- Removable filter chips so the active query stays visible
Advanced filter builders are justified only when users regularly combine five or more conditions. Otherwise they just hide query logic behind an extra click.
Selection, bulk actions, and editing
Carbon Design System separates toolbar controls, batch actions, and single-row actions, and disables row-level actions once batch mode is active so users don't trigger two conflicting operations (Carbon, 2026). That separation matters more as the action list grows:
- Make selection, select-all scope, and persisted selection across pages explicit
- Show a contextual action bar once rows are selected: approve, assign, export, archive
- Separate reversible actions from destructive ones; add confirmation or undo where it counts
- Account for permission states: unavailable, restricted, pending, or failed actions should all look different
| Editing surface | Best for |
|---|---|
| Inline cell editing | A single, low-risk field change |
| Modal | A small set of fields with validation |
| Side panel | Edits that need table context visible alongside |
| Dedicated page | Many fields, dependencies, or audit history |
Whichever surface you pick, design the full lifecycle: entering edit mode, showing what changed, validating immediately or on save, handling conflicts, and recovering from errors without losing work.
Approval queues, exception handling, audit trails, and status transitions matter more once a table represents a live operational process rather than a static report. That showed up clearly on Vested Futures, a vendor-sourcing platform where sustainability teams track ESG scores and approvals across hundreds of suppliers.
When the data is technical and the stakes are real, aligning domain logic, user roles, and business outcomes is harder than layout polish alone. That is the product UX work What if Design does with climate-tech and energy teams.
Treat the table as a design-system and engineering contract

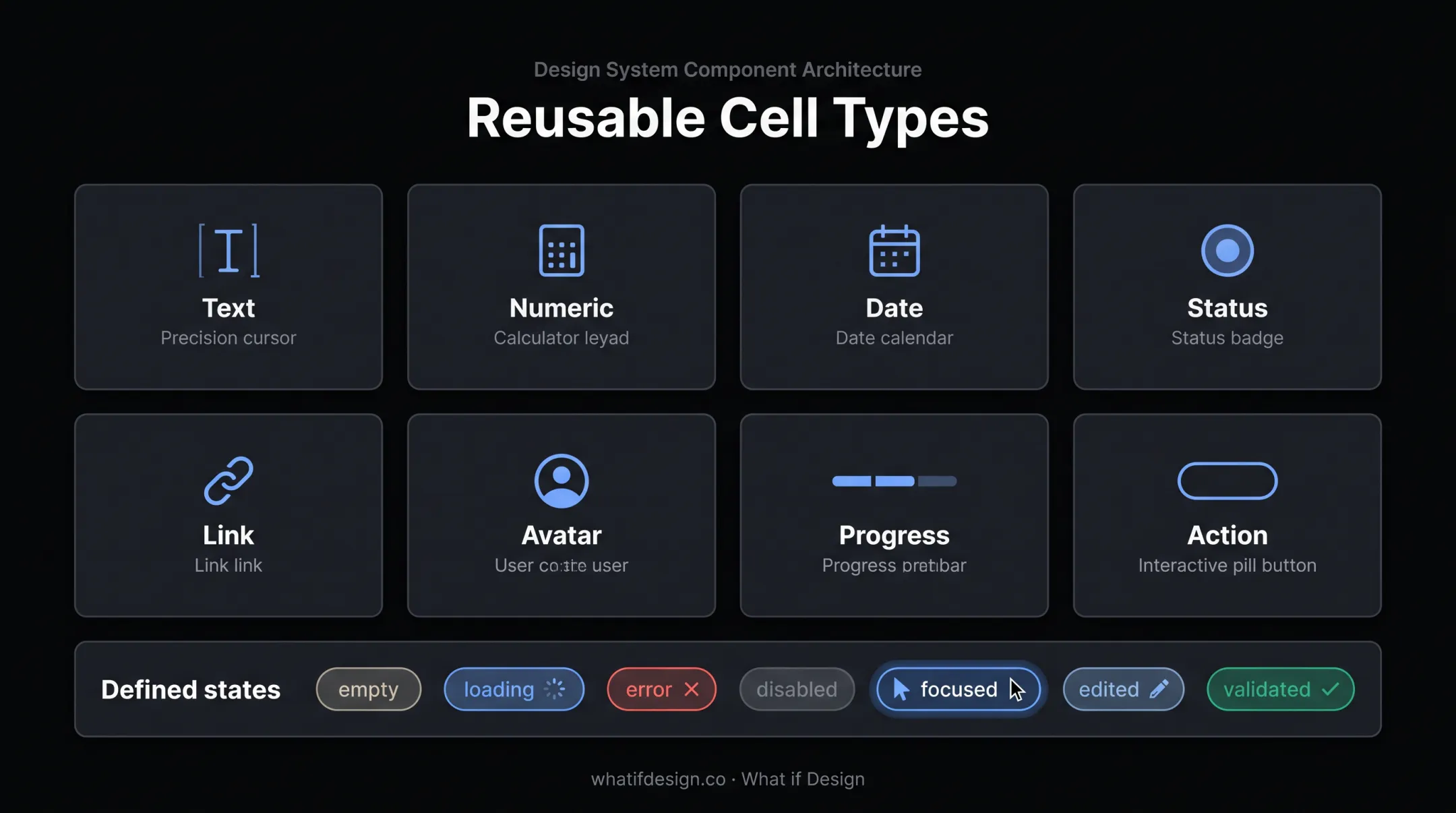

A table this complex can't live as a one-off screen. It needs reusable primitives: text, numeric, date, status, link, avatar, progress, action, and selection cells, each with defined states: empty, loading, error, disabled, focused, edited, validated.
Design and engineering should document tokens and behaviour together for:
- Density and spacing
- Truncation and responsive rules
- Keyboard navigation and focus
- Sorting, filtering, and selection states
- Error and conflict handling
Implementation constraints to design around early
Large datasets need server-side sorting and filtering, pagination or virtualisation, and stable row identity so selections don't break on reload.
Google's web.dev documentation recommends rendering only the visible window of rows in a slow, large table rather than the full dataset. That is a performance decision, not a universal row-count rule. Decide based on measured load times, not guesswork.
Accessibility isn't optional
WCAG 2.2 became a W3C Recommendation in 2023, and its requirements apply directly to tables (W3C):
- Use semantic table markup with proper header associations
- Support full keyboard navigation with a visible focus state
- Announce dynamic sort and filter changes
- Never rely on colour alone to convey status
- Avoid hover-only actions that keyboard users can't reach
For responsive and international use, decide early whether mobile gets horizontal scroll, priority columns, or a stacked-record view. Support longer translated labels, local date and number formats, and right-to-left layouts where column order itself needs to flip, not just the text direction.
Before implementation, get product, design, engineering, data, and accessibility stakeholders in the same review.
On our website UI design work for climate-tech component libraries, we build these primitives once: state variations, developer specs with exact measurements, and CSS tokens. Dashboards, mobile views, and utility control rooms stay consistent instead of drifting apart screen by screen.
Frequently Asked Questions
What is a data table?
A data table is a structured set of records arranged in rows, with shared attributes arranged in columns. In B2B products, it's the tool users rely on to scan, compare, investigate, edit, and act on operational data.
What makes a good data table?
A good data table matches the user's task, with clear hierarchy, meaningful identifiers, and consistent formatting. It also needs discoverable filters and sorting, visible status states, accessibility, and reliable performance at real data volumes.
When should a B2B product use a data table instead of cards?
Use a table when users compare multiple records across shared attributes. Cards suit richer, more visual, or less structured content where row-by-row comparison isn't the point.
How should I design a data table with many columns?
Prioritise columns by decision relevance, freeze the primary identifier, and allow horizontal scrolling where needed. Let users hide or reorder secondary fields, and move rarely used attributes into a detail view.
Which table features are essential for complex B2B products?
Essential features include task-specific search and filters, sorting, clear status states, and selection with bulk actions. Add a clear editing surface, permission handling, accessibility compliance, and a performance plan for large datasets.
