Effective filter UX isn't a row of checkboxes bolted onto a table. It connects data structure, user goals, interaction patterns, query performance, and feedback into one coherent system. Get it wrong, and even well-organised data feels impossible to navigate.
In Baymard's 2025 ecommerce benchmark, 58% of desktop and 78% of mobile sites delivered poor-to-mediocre product-list UX — a signal that finding the right item in a large set remains an unsolved problem across industries, not just in enterprise dashboards.
This guide covers choosing filter models, positioning controls, deciding when results should update, and scaling the experience for technical and enterprise products.
Key Takeaways
- Filters should match how users understand data, not expose every database field equally.
- Choose the pattern by data type, option count, user expertise, and explore-vs-execute intent.
- Large datasets need in-filter search, progressive disclosure, visible filter state, and empty-state recovery.
- Judge filter UX by usability, accessibility, performance, and analytics, not visual polish.
Design the Filter Model Before Choosing the UI
Before picking a single checkbox or dropdown, define what a filter actually represents: an identifier or field, a relationship or operator, and a value or range. "Status equals 'in review,'" "emissions greater than 50 tonnes," and "created within the last 30 days" are all filters built from the same three parts.
Map every field type in your dataset before choosing controls:
- Booleans need toggles, not dropdowns
- Single-select fields work well as radio buttons or a select menu
- Multi-select tags call for checkboxes or chips
- Numeric values need range inputs or sliders
- Dates need presets plus a custom range
- Hierarchical categories need parent-child logic, not a flat list
Separate Filtering From Sorting, Search, and Grouping
These four functions get conflated constantly, and that's where confusion creeps in:
- Filtering removes records that don't meet selected criteria
- Sorting changes the order of what's left
- Search retrieves items matching typed text
- Grouping organises results for side-by-side comparison
Combining them can help users — a search box that also filters, for instance — but presenting all four as interchangeable controls just creates guesswork.

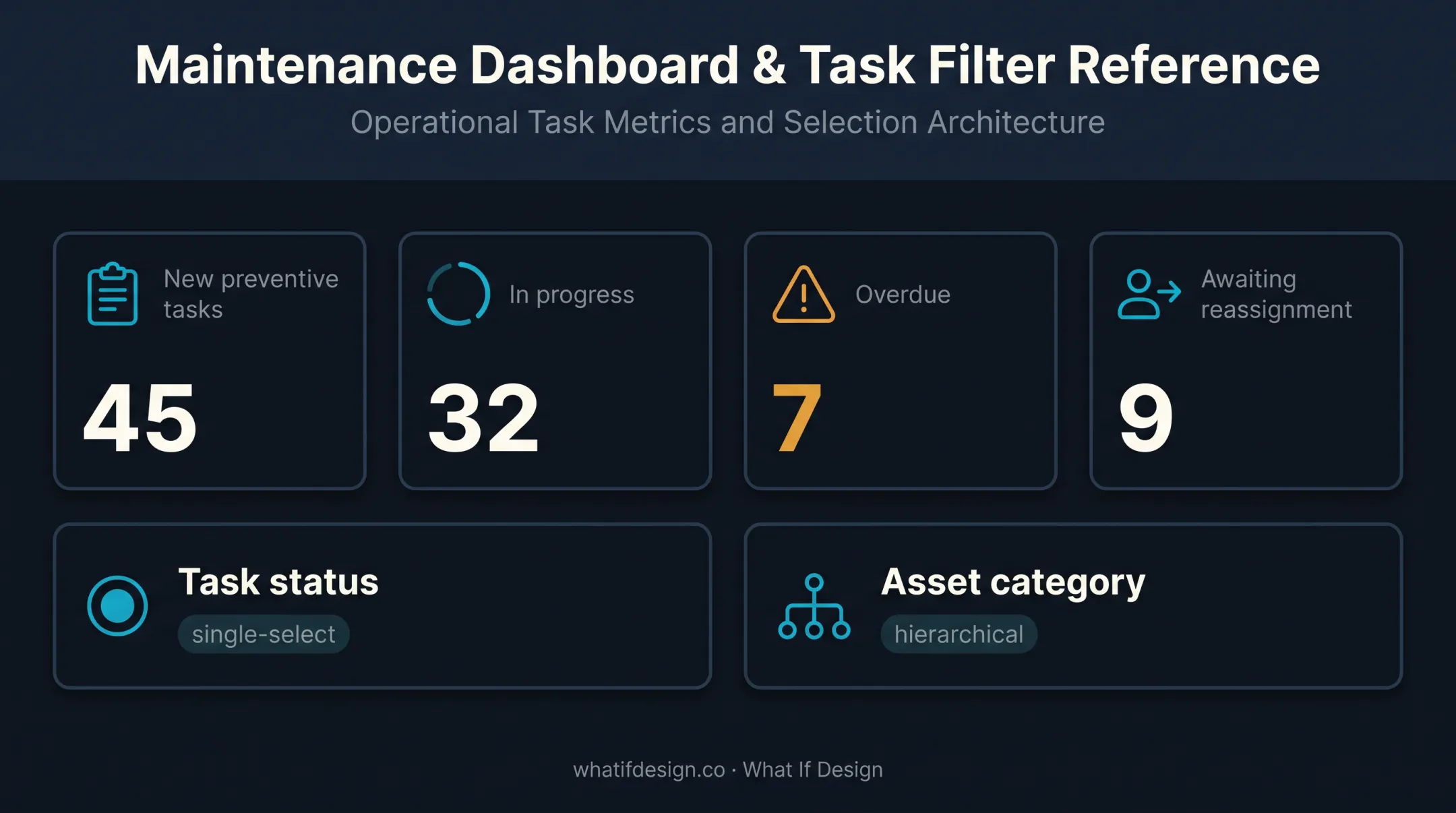

In an asset management platform What if Design built for the Ministry of Health of Saudi Arabia, the dashboard tracked Assets, Inventories, Reporting, Workflows, Tasks, Tickets, Tracking, and Setup. It surfaced 45 new preventive tasks, 32 in progress, 7 overdue, and 9 awaiting reassignment.
Task status (single-select) and asset category (hierarchical) needed distinct interaction models. Blending them into one dropdown would have hidden the logic from facility staff who needed answers fast.
Prioritise fields by task frequency, not technical availability. Research which fields show up in support tickets, usability tests, and search logs. The field that's easiest to expose in your database isn't necessarily the one users reach for first.
Keep category names specific and jargon-free. Once combinations get complex, make filter logic visible: OR within a category, AND across categories.
Choose Filter Patterns Based on Context
Placement depends on how many filters exist and how persistently users need them.
| Placement | Best suited for |
|---|---|
| Vertical sidebar | Many filter groups, persistent access across a long table or list |
| Horizontal filter bar | A small set of high-priority controls above results |
| Inline/column-level | A filter tied to one specific column, chart, or card group |
Carbon Design System documents both sidebar and top-of-dataset approaches without claiming one is universally faster — the right choice depends on your filter count and layout density, according to its filtering pattern guidance.
Match the Control to the Decision
Once placement is set, pair each filter with the control that matches how users decide:
- Checkboxes when several values can apply at once
- Radio buttons or single-select menus when only one option is valid
- Toggles for on/off or true/false states
- Range sliders or numeric inputs for measurable thresholds
- Date presets plus a custom range for logs, reports, and activity data
When option lists run long, add search inside the filter panel and move focus to that field when the panel opens. State clearly whether search matches filter names, values, or both.
Show What's Active
Controls alone are not enough. Users also need a live picture of what is already applied.
Use applied-filter chips or a summary bar outside collapsed menus. Let people remove one condition, clear a category, or clear everything in one action. Baymard found that skipping a visible applied-filter overview removes immediate confirmation and context. Placement tests were inconclusive, but the overview itself still needs to be easy to spot.
Include the filter name when values could be ambiguous. "Source: India" reads very differently from "Deployment region: India."
For power users, keep operators like "contains," "does not contain," and "between" behind an advanced-filter entry point so everyday tasks stay simple by default.
Control Application, Loading, and Feedback

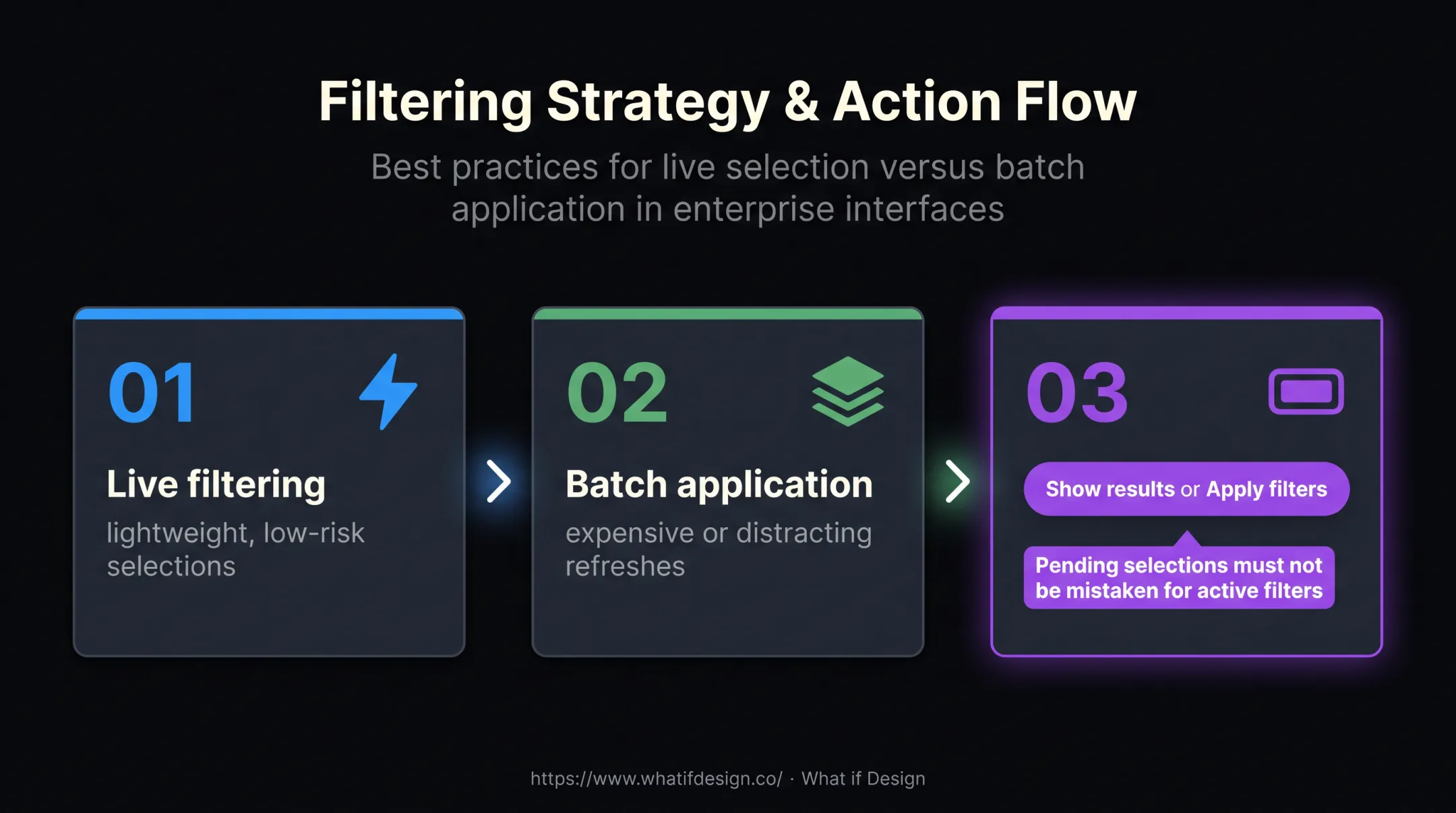

Should filters update results instantly, or wait for a deliberate action? It depends on query cost and interaction frequency.
- Use live filtering for lightweight, low-risk selections where immediate feedback supports exploration, such as toggling a status checkbox.
- Use per-filter or batch application when multiple selections would trigger expensive or distracting refreshes, especially across large or joined datasets.
- Label the action clearly ("Show results" or "Apply filters") so pending selections never get mistaken for active ones.
While results load:
- Preserve selected filter values
- Avoid layout shifts that make the interface feel unstable
- Show result counts only when reliable; if delayed or permission-limited, say so rather than guessing
Handle Zero Results and Conflicts Gracefully
Disable options when the system can confidently detect a conflict, or explain why an option isn't available.
When a combination returns nothing, show the active conditions clearly and offer a direct path back. NN/g recommends a concrete empty state such as "There are no records to display for the selected date range," not an ambiguous blank screen.
Accessibility matters here too. WCAG 4.1.3 (Status Messages) requires that text like "Searching…" or "No results found" be programmatically announced when it doesn't receive keyboard focus. The results list itself doesn't count as the status message. Test this separately from the visual update.
Scale Filter UX for Large and Evolving Datasets
Enterprise datasets rarely sit still. Taxonomies change, permissions restrict visibility, and option lists can run into the thousands.
These patterns hold up when catalogues grow and keep changing:
- Load option values asynchronously when a category opens, with clear loading, error, and retry states
- Add in-filter search for high-cardinality fields such as users, locations, assets, or tags, including partial matches and recent selections
- Offer saved views or presets for recurring workflows. Jira's saved-search feature lets teams name, rerun, and share filtered views without rebuilding them each time
- Keep dependent filters stable: when a parent category changes child options, preserve context instead of resetting the user's place
- Handle messy data explicitly: missing values, duplicate labels, archived records, and inconsistent units should never disappear silently
On smaller screens, don't just shrink a desktop sidebar. A full-screen filter-edit mode with a sticky applied-filter summary and a clear return path works better than a cramped drawer.
Performance and accessibility need the same rigour as layout. Test with realistic data volumes, not a small prototype set.
Before release, verify:
- Keyboard navigation and visible focus states
- Non-colour indicators for active filters (WCAG's Use of Color guideline warns against relying on colour alone)
- Long labels, localisation, and adequate touch targets
Validate the Experience Before and After Release
Build representative tasks across roles: a known-item lookup, an exploratory analysis, narrowing a large table, comparing dashboard segments, and recovering from zero results. Run usability tests that check whether users can actually explain which conditions are currently active, not just whether they can click the right box.
Partner with engineering to test realistic data volumes, slow responses, partial failures, and permission edge cases. Track behavioural signals like abandoned filter panels, repeated clearing, and no-result frequency as prompts for investigation, not proof of success on their own.

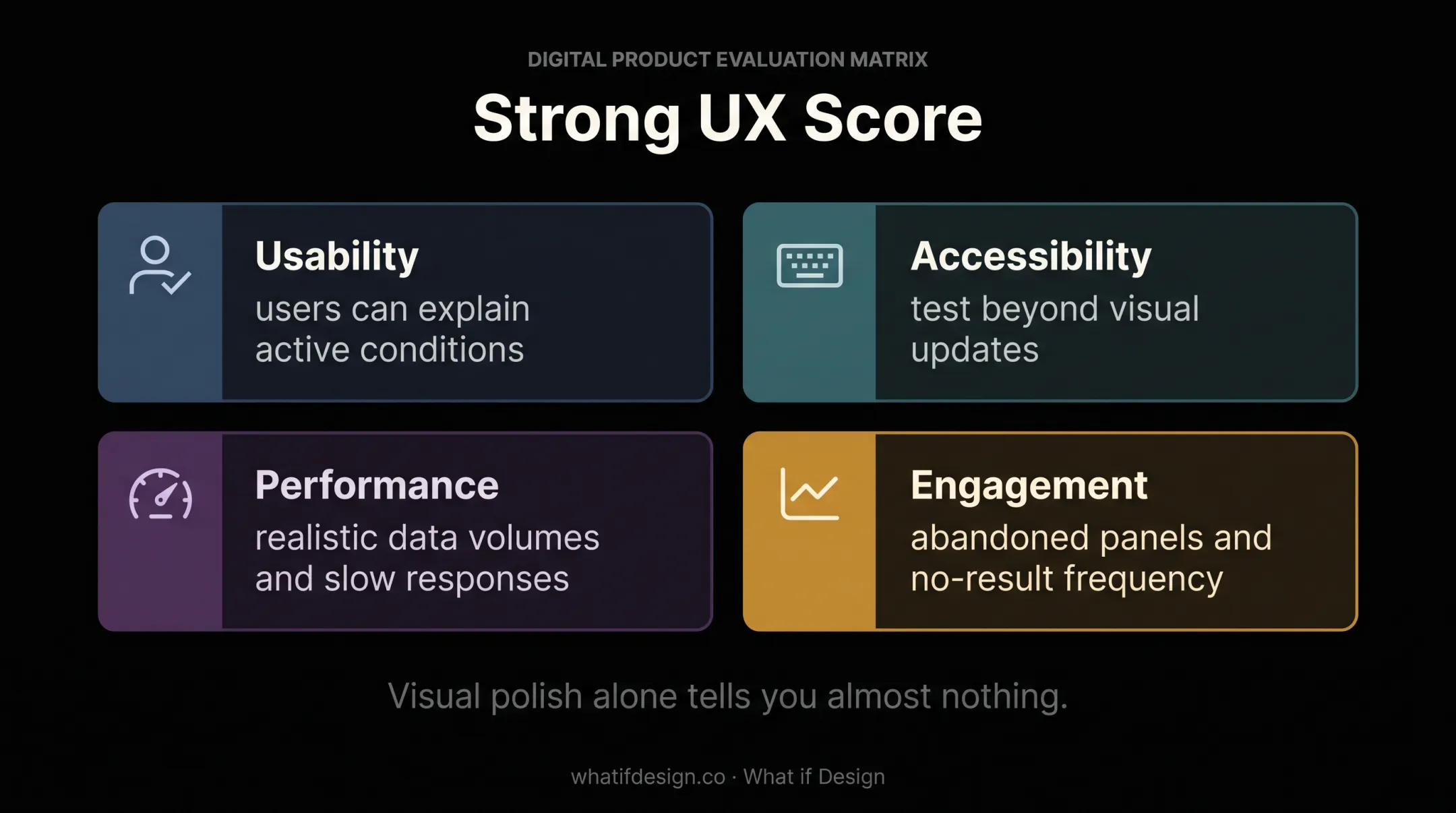

A strong UX score weighs usability, accessibility, performance, and engagement together. Visual polish alone tells you almost nothing about whether people found what they needed.
This is where What if Design spends much of its time with climate tech, ESG data, EV, and deep-tech teams. On VendorX, an ESG vendor-discovery platform, its UX and product strategy work turned complex sourcing data into filterable, comparable views for buyers evaluating suppliers.
Before shipping, run through this checklist:
- Are the filters relevant to what users actually need to act on?
- Are labels understandable without internal jargon?
- Are active filters discoverable and logically consistent?
- Is the system fast enough, even at full data scale?
- Can every action be reversed easily?
- Does the experience meet accessibility standards?
Conclusion: Make Large Datasets Feel Navigable
Strong filter UX reduces complexity without hiding the structure or meaning of the underlying data. The sequence holds regardless of industry:
- Understand the data
- Prioritise user goals
- Choose the right control and placement
- Define application behaviour
- Communicate state clearly
- Validate at production-like scale, not on a demo dataset
Filters aren't a component to bolt on at the end of a sprint. They're part of the information architecture itself — and treating them that way is what separates a dataset that feels searchable from one that just feels big.
Frequently Asked Questions
What is a filter in UX, and can you give examples?
A filter is a control that narrows visible results based on selected criteria. Common examples include status, date range, category, owner, location, or a numeric threshold like "emissions greater than 50 tonnes."
What are the common types of UX filters?
Common types include checkboxes, radio buttons, dropdowns, toggles, range inputs, and date pickers. Large datasets also need searchable lists, applied-filter chips, and condition builders for operators like "contains" or "between."
How do you design filters for large datasets?
Prioritise fields by actual task frequency, and use progressive disclosure with searchable option lists. Show clear result feedback, and test performance with realistic data volumes rather than small prototypes.
Should filters apply automatically or require an Apply button?
Live filtering works for lightweight, low-risk selections where instant feedback helps exploration. Batch or per-filter application suits complex queries where instant refreshes would feel jarring or expensive.
What is the difference between filtering, sorting, and search?
Filtering narrows which records appear. Sorting changes their order. Search retrieves records matching typed text. All three can work together, but they shouldn't be presented as interchangeable controls.
