A map interface answers a question no table or dashboard can: where, relative to what, and how close? But an energy map isn't a basemap with pins dropped on it. It's a system combining geographic context, infrastructure data, operational status, analytics, and user controls — and its quality depends entirely on the data model and decisions behind it.
This guide covers the design process, when a map-first interface makes sense, the variables that affect usability, common failure points, and alternatives worth considering before you commit to a map.
Key Takeaways
- Start from user decisions, not the map provider or available layers
- Use progressive disclosure: show critical signals first, reveal detail on demand
- Encode status with colour plus shape, labels, or patterns — never colour alone
- Treat performance, accessibility, and data freshness as core UX, not engineering afterthoughts

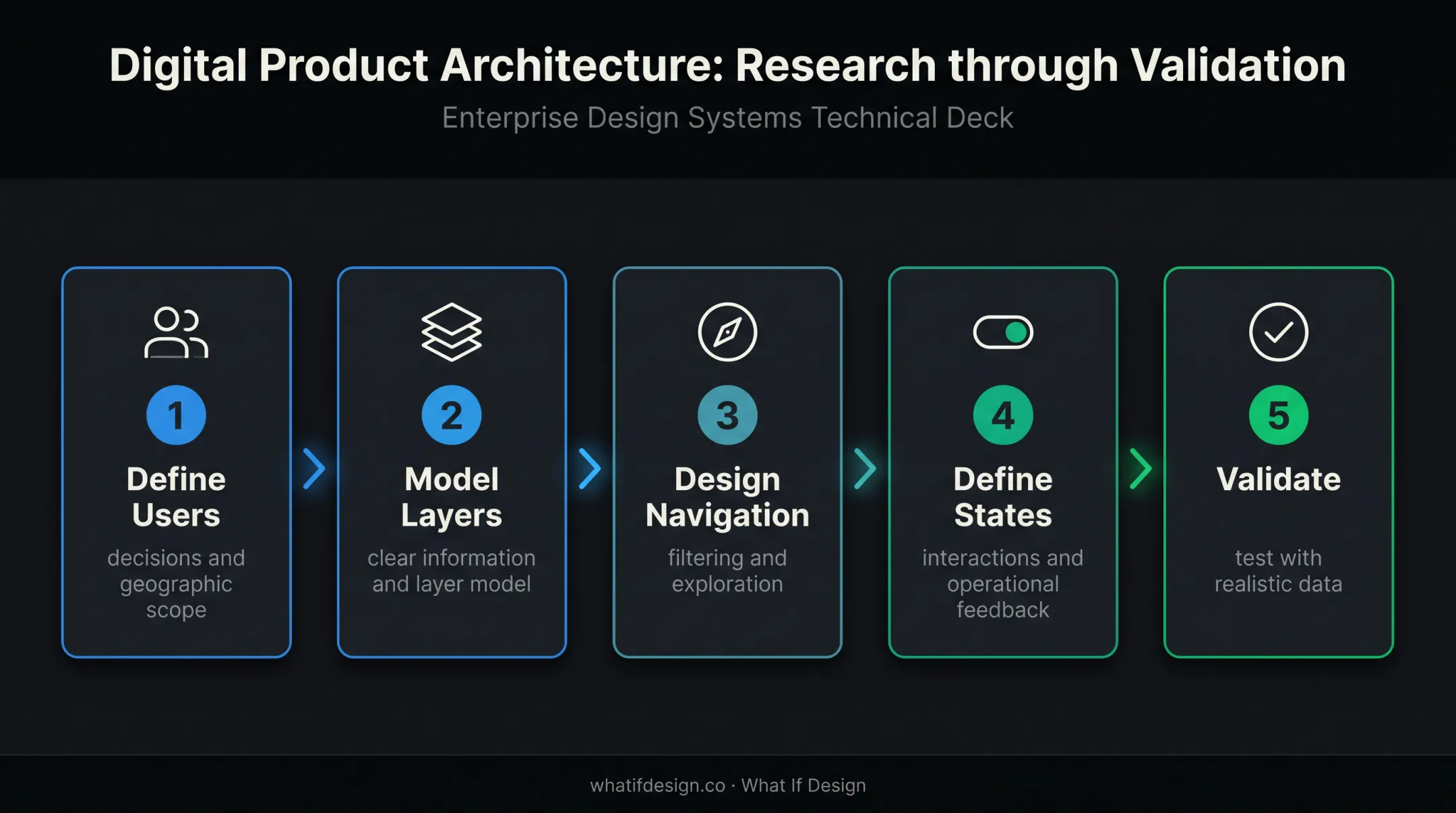

How to Design Map UI for Energy and Infrastructure Products
Step 1: Define the Users, Decisions, and Geographic Scope
Different users ask different questions of the same map. A grid operator wants to know which feeder has a fault. A renewable-energy planner wants to know where interconnection capacity exists. A field technician wants directions to a specific transformer.
Before any visual design starts:
- List the primary user groups: operators, planners, technicians, asset owners, investors, public-sector stakeholders
- Document the core question each group needs answered: where is capacity available, which assets need attention, how has a project progressed
- Define the geographic scale: a single facility, a regional grid, a national network, or a distributed portfolio
Skipping this step is the single biggest reason energy maps end up overloaded with layers nobody asked for.
Step 2: Build a Clear Information and Layer Model
Once you know the decisions, structure the data that supports them. Separate the interface into distinct layers so users always know what they're looking at:
- A subdued basemap (roads, terrain, labels kept quiet)
- Contextual infrastructure (service territories, rights-of-way, jurisdictional boundaries)
- Primary product data (the assets users came to find)
- Analytical overlays (risk scores, heatmaps, capacity choropleths)
- Interaction controls (filters, search, layer toggles)
Match representation to asset type: substations and sites as points, transmission lines and pipelines as lines, service areas and development zones as polygons. Then define visibility rules by zoom level, role, and task, so a technician sees different detail than an investor viewing the same portfolio.
Before designing a single marker or pop-up, agree on the metadata every asset needs: name, status, owner, capacity, timestamp, source, and a data-confidence indicator. Without this, status badges and tooltips get built on inconsistent fields later.
Step 3: Design Navigation, Filtering, and Exploration
Predictable interaction patterns matter more than clever ones. Zoom, pan, reset-view, locate-me, and search should behave consistently, with non-gesture alternatives for desktop and keyboard users.
Filters should map to real infrastructure decisions, not raw database fields:
- Asset type and operating status
- Project phase and commissioning date
- Capacity range
- Geography or risk category
Keep filter panels collapsible so they don't cover map content during spatial analysis tasks.
Decide early how the map stays in sync with any supporting table, chart, or detail panel. Selecting an asset, changing a filter, or panning to a new area should update every view consistently.
Step 4: Design Asset States, Interactions, and Operational Feedback
Every important asset type needs a defined visual language for default, hover, selected, disabled, warning, offline, maintenance, and error states. Inconsistent states across asset types are one of the fastest ways to erode user trust in a map.
For dense networks, use clustering, aggregation, and zoom-dependent detail. Never let clustering hide a critical exception like a live fault.
Keep interaction patterns clear when the map is under load:
- Use tooltips for lightweight previews
- Open persistent side panels for anything users need to compare, export, or act on
- Show update timing and stale-data warnings for live telemetry, without distracting animation
Step 5: Prototype, Test, and Validate with Realistic Data
Clean sample data hides real problems. Prototype with realistic asset density, incomplete records, overlapping infrastructure, and long labels across multiple zoom levels.
Test whether users can locate an asset, understand its status, compare sites, and complete an action without designer guidance. Validate across desktop, tablet, and field-mobile conditions. Poor connectivity, bright outdoor light, keyboard-only navigation, and screen readers all surface different failures.
Measure task completion, search effort, and interaction errors with actual research data rather than assumptions.
Climate-tech and infrastructure teams often reach this stage while the technical brief is still evolving. What if Design runs research, product strategy, and interface design together so those workstreams stay aligned rather than sequential.
When Should You Use a Map UI and What Do You Need First?
A map-first interface earns its place when location, distance, proximity, or network relationships directly affect the decision a user is making. If the deciding factor is spatial, a map helps. If it's purely numeric or chronological, it probably doesn't.
Suitable use cases include:
- Renewable-site selection and interconnection planning
- Distributed energy and battery fleet monitoring
- EV charging coverage and corridor planning
- Infrastructure inspection and field operations
- Climate-risk and exposure analysis
What if Design sees the same rule across grid management software, renewable asset platforms, energy monitoring tools, and EV charging apps its clients build. The map only works when the underlying product decision is clear first.
Before you build, you need:
- Reliable geographic data with consistent coordinate systems
- Defined asset identifiers that persist across systems
- Known status and timestamp rules for every data source
- A clear user role and permission model
- An agreed fallback for missing or uncertain data
Skip any of these, and the map will look fine in a demo and fail the first time a technician relies on it in the field.
Key Parameters That Affect Map UI Performance and Usability
Map quality depends on controllable variables: density, hierarchy, status encoding, scale behaviour, data freshness, and interaction cost. Visual polish alone doesn't fix a map that hides the wrong information at the wrong zoom level.
Information Density and Progressive Disclosure
Decide what appears at each zoom level before deciding how it looks. Pacific Power's outage map is a useful reference: outage pins are grouped and ringed according to current zoom level, and selecting a cluster reveals individual pins and outage summaries only once the user zooms in. Nothing forces the user to parse every outage at once.
Visual Hierarchy, Contrast, and Accessibility

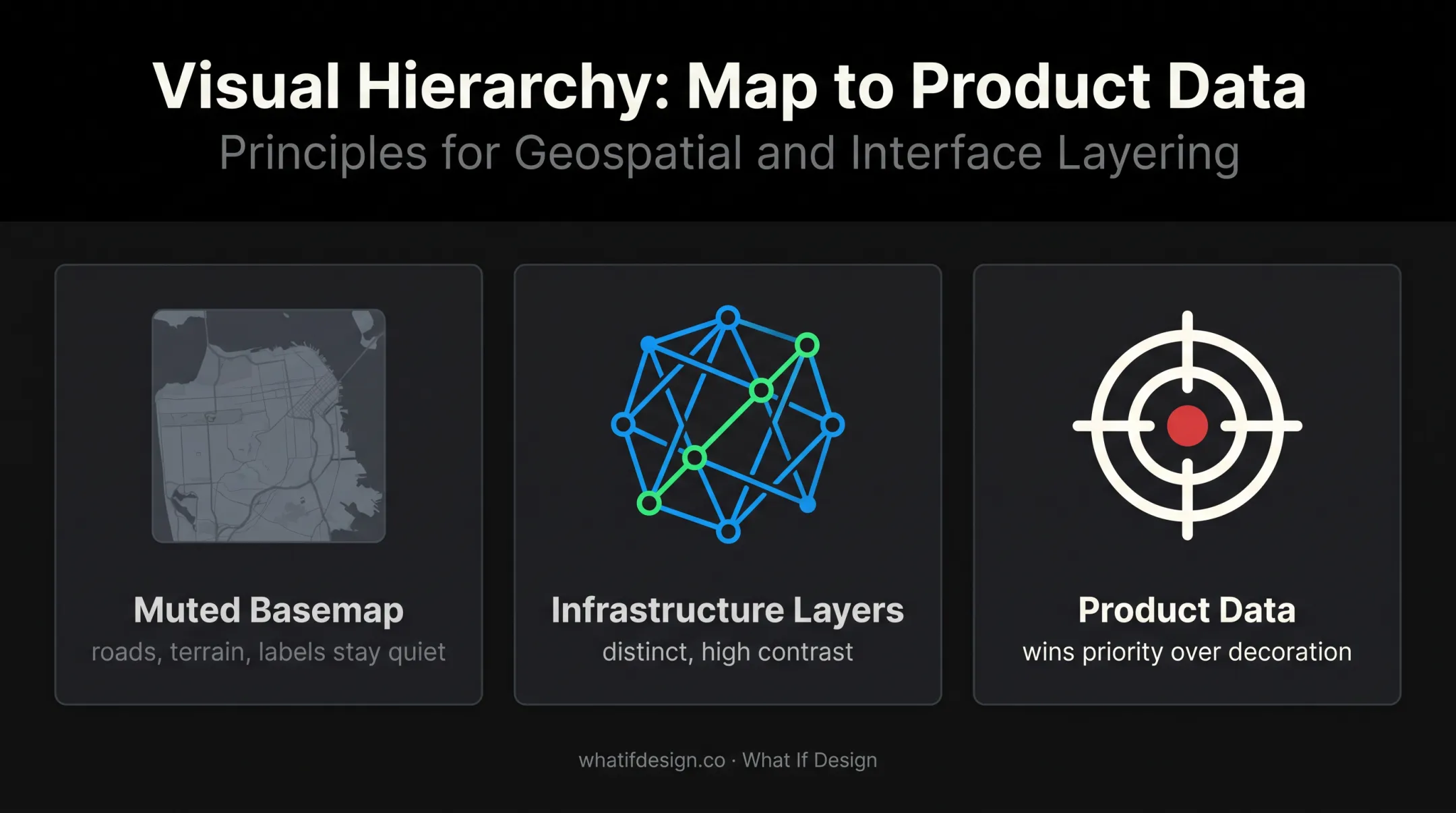

A muted basemap with distinct, high-contrast infrastructure layers lets product data win priority over geographic decoration. Operators read assets first; basemap chrome stays secondary. The same hierarchy supports accessibility rules common in utility and government work.
Status cannot rely on colour alone. WCAG's Use of Color criterion requires that colour not be the only visual means of conveying information. Practical checks:
- Pair status colours with icons, patterns, or labels
- Verify contrast on text and on meaningful map controls
- Test critical states in greyscale before release
Asset Status and Uncertainty Representation
Operational state, project phase, severity, and data confidence are four different concepts. Collapsing them into one colour scale is how maps become misleading.
- Legend: label every colour and icon explicitly
- Provenance: show timestamp and source on every status value
- Uncertainty: flag low-confidence or estimated data in the UI, never only in docs
Spatial Relationships and Infrastructure Topology
Connection lines, overlapping rights-of-way, and service boundaries should show only relationships the data proves. Adani Electricity Mumbai's ArcGIS-backed system traces a feeder to every connected asset and consumer, surfacing "most probable" fault locations as estimates rather than confirmed facts.
Keep that split visible on the map:
- Traced paths and assets from known topology
- Assumed or probable faults labelled as estimates
- No implied link where the network model has none
Performance, Freshness, and Resilience
Clustering, simplified geometries, and viewport-based queries keep dense networks responsive. Cut interaction cost the same way: fewer pan-zoom dead ends, predictable hit targets, and short paths to asset detail.
Tell users when data is delayed or missing. Stale telemetry must never read as a safe or inactive asset.
Common Mistakes, Troubleshooting, and Alternatives
Most energy map failures trace back to a handful of repeatable mistakes:
| Mistake | Troubleshoot with |
|---|---|
| Treating the map as the product | Identify the primary task; remove layers and controls that don't support it |
| Showing every layer at once | Zoom-dependent rules, clustering, layer groups, a "show more detail" action |
| Ambiguous colour and inconsistent markers | A documented status taxonomy, accessible legend, consistent interaction model |
| Undocumented data freshness | Visible timestamps and confidence indicators on every live value |
At What if Design, clean-tech interface work builds colour palettes and interaction states for data visualisation, then audits them against accessibility requirements before launch. That catches ambiguous status colour and legend gaps before operators hit them in the field.

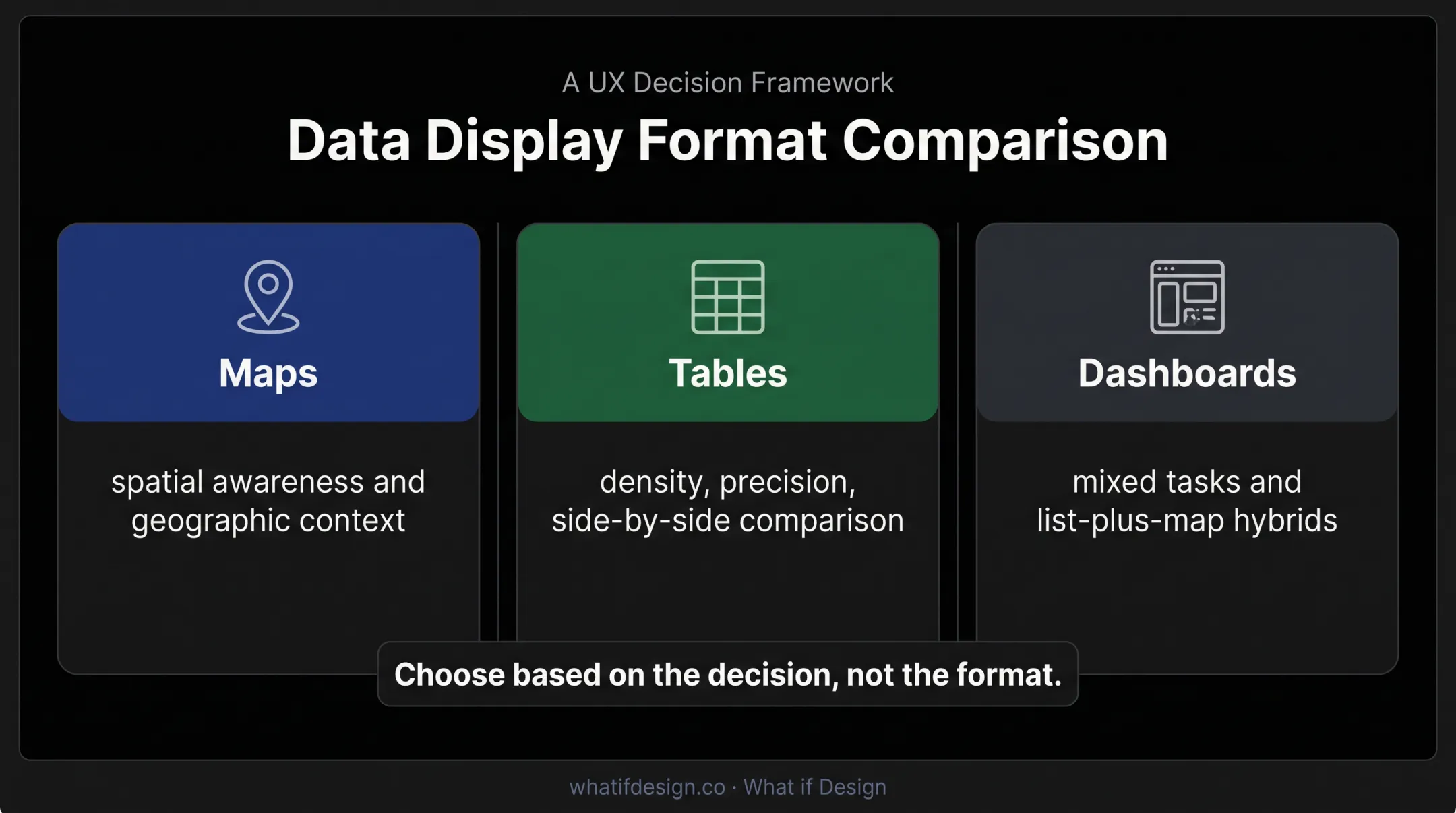

Fixing the map only helps when a map is the right tool. If the primary job is comparison, scheduling, or asset-level records, another format is often faster:
- Maps for spatial awareness and geographic context
- Tables for density, precision, and side-by-side comparison
- Dashboards or list-plus-map hybrids when tasks mix and not everything belongs on the canvas
Choose based on the decision, not the format you started with.
Conclusion
Map UI design for energy and infrastructure works best when the interface connects geography to a specific operational, planning, or investment decision, while keeping hierarchy, status, uncertainty, and performance legible at every zoom level.
Preparation and iterative testing matter more than decorative styling. Teams building complex climate-tech or infrastructure products can lean on What if Design's 4–8 week product UX and prototyping process:
- Insight sprints that surface real pain points
- Prototypes built to earn pilot sign-ups
- Testing that cuts rework before launch
Frequently Asked Questions
What is map UI design for energy and infrastructure products?
It's the system of basemaps, infrastructure layers, asset states, controls, and interactions that helps users interpret and act on geographically distributed energy data. Design quality depends on the data model behind it, not just visual styling.
What should an energy map interface display?
Only the layers and metadata relevant to the user's task, typically assets, connections, status, capacity, project stage, timestamp, and data confidence. Everything else belongs behind a filter or zoom threshold.
How do you prevent infrastructure maps from becoming cluttered?
Use progressive disclosure, clustering, zoom-based visibility, and grouped layers so the default view shows only what matters. Add detail-on-demand interactions, like side panels, for anything users need to dig into further.
Which mapping tools are best for energy infrastructure products?
The right choice depends on data volume, real-time needs, licensing, and engineering capacity. Documented options include Esri ArcGIS for utility network tracing, Mapbox for EV charge-point discovery, and Google Maps Platform for station-level data. Verify current capabilities before committing.
How should map UI represent real-time asset status?
Pair clear status definitions with accessible visual encoding, visible timestamps, and stale-data states. Never rely on colour alone. Text or icon alternatives keep status readable for every user.
How can map UI design improve decision-making for climate-tech products?
A well-designed map helps users see spatial relationships, compare sites, identify constraints, and prioritise action without wading through raw data. That clarity is often the difference between a map users trust and one they ignore.
