But most icon libraries fall apart in practice. Teams redraw the same concept five different ways, strokes stop matching across products, and nobody remembers which version is current. Research from the Nielsen Norman Group on icon usability found that even familiar icons are frequently misread outside their expected context, which is exactly why icons rarely replace text entirely.
A consistent icon system isn't a folder of attractive symbols. It depends on how brand strategy, metaphor, grids, stroke rules, colour, accessibility, and implementation work together. This article covers when iconography makes sense, how to build and document a system, which parameters actually drive consistency, and the mistakes that cause icon libraries to fragment.
Key Takeaways
- A strong icon system turns brand personality into repeatable visual rules without sacrificing clarity.
- Start with an audit of existing icons, audiences, use cases, and product vs. marketing vs. status icons.
- Document grid, stroke, fill, colour, spacing, naming, and accessibility rules together, not as afterthoughts.
- Test icons in real brand and product contexts before publishing.
- Govern the library with clear ownership and versioning.
- Reach for illustrations or diagrams when a concept is too complex for a single icon to carry.
How to Build a Consistent Icon System for Brand Guidelines
Building an icon system is less about drawing and more about sequencing decisions correctly. Skip a step, and the library fractures later. Here's the order that actually holds up.
Step 1: Audit the Current Icon Landscape
Before anyone opens a design tool, inventory what already exists:
- List icons across brand identity, website, product UI, presentations, social content, reports, and marketing campaigns.
- Flag duplicates, inconsistent styles, unclear metaphors, and icons reused for different meanings.
- Classify each by purpose: navigation, action, status, workflow, feature, data concept, or marketing expression.
- Decide which assets belong in the core system versus one-off marketing use.
When we built Susteon's icon system, this audit mattered because the brand needed to represent concepts like electrolysis, carbon capture, and green hydrogen: ideas with no everyday visual shorthand.
Comparing the existing icon language against the brand's strategic traits early on meant the team wasn't redrawing the same molecule icon three different ways by month three.
Step 2: Define the System's Visual Direction
Set a small number of principles connecting icon style to brand personality: precise, approachable, technical, human, sustainable, optimistic. Choose outline, filled, flat, duotone, or a mixed approach, and document exactly when each applies.
| System | Visual or semantic choice | Why it matters |
|---|---|---|
| Atlassian | Rounded corners paired with sharp interior edges | Creates a recognisable look even at small sizes |
| Fluent 2 | Outline by default, filled for selected states | The fill change signals state, not decoration |
| Material 3 | Adjustable weight, fill, grade, and optical size axes | Flexibility locked behind approved variants only |
A deliberate grammar, applied consistently, is what reads as brand rather than a generic icon pack. Define how icons relate to your logo, typography, photography, and colour palette so they reinforce the identity instead of competing with it.
Step 3: Create the Foundational Icon Rules
- Select a base grid, keyline shapes, fixed canvas, and internal padding.
- Decide on an optical-alignment method: a circle matched to a square's bounding box will look smaller beside it, so it typically needs a slight overshoot.
- Define size tiers for product, responsive, marketing, and larger feature applications, including when to simplify or redraw rather than scale.
- Set rules for stroke weight, joins, end caps, corner radii, angles, perspective, and the relationship between filled and stroked forms.

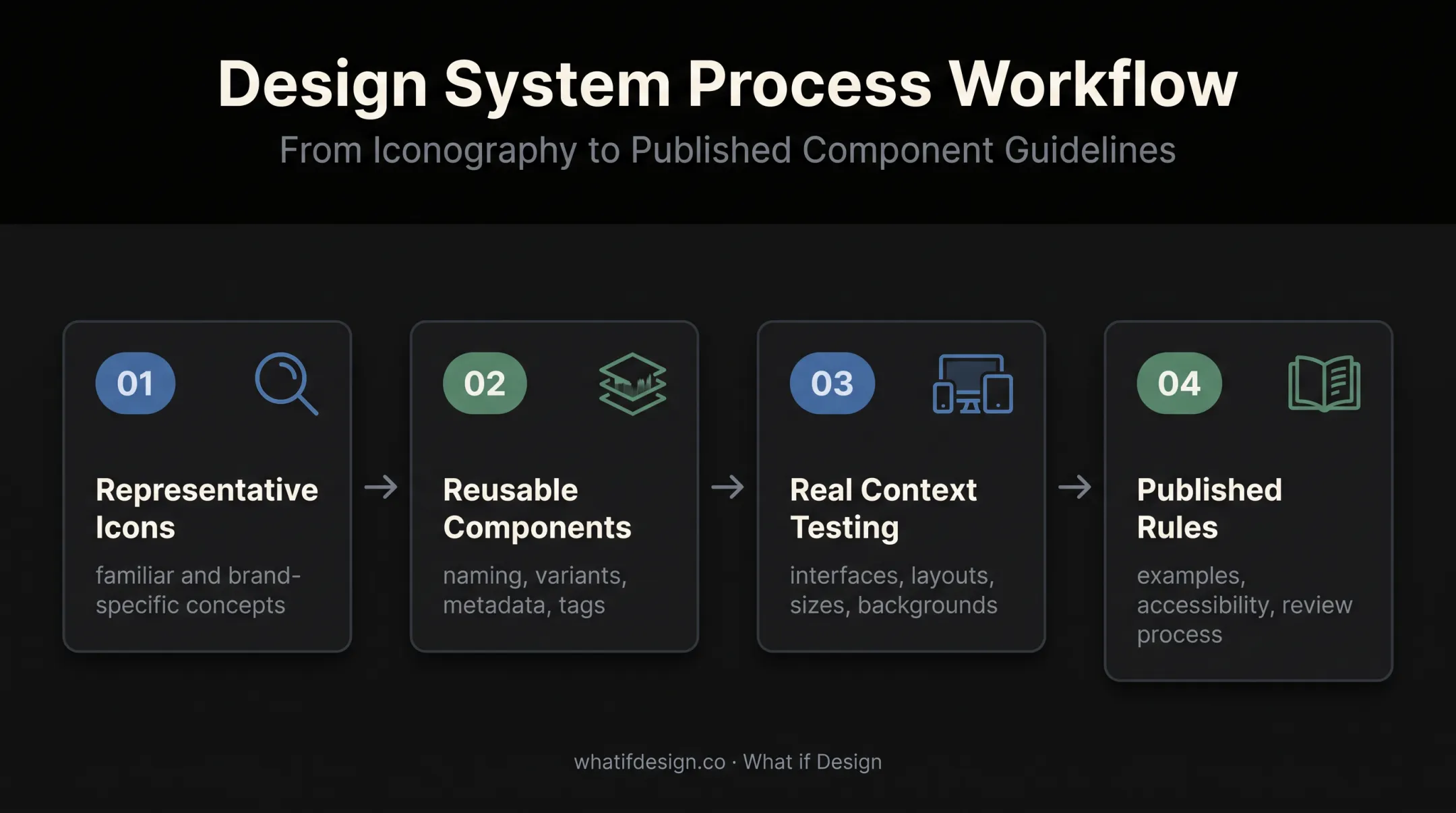

Step 4: Build, Test, and Publish the Library
- Start with representative icons. Mix familiar actions (search, settings, delete) with harder brand-specific concepts so the system gets tested against difficult cases early.
- Build reusable components. Use consistent naming, variants, metadata, tags, and export settings for both designers and developers.
- Test in real contexts. Check interface components, brand layouts, light and dark backgrounds, multiple sizes, and actual content rather than a blank artboard.
- Publish the rules. Include correct and incorrect examples, usage boundaries, accessibility notes, and a process for requesting, reviewing, updating, and retiring icons.
A system without that last step is just a file. Governance is what keeps it from drifting six months later.
When Should You Create an Icon System, and What Do You Need First?
A formal system earns its cost when multiple teams, products, platforms, or channels need icons to behave the same way. A single landing page or pitch deck usually needs a focused, documented set of rules — not a full governance process.
Good fit for a formal system:
- Product teams scaling past one core experience
- Rebrands requiring coordinated icon replacement
- Multi-product organisations
- Technical companies explaining non-obvious concepts (battery chemistry, carbon capture, grid interconnection)
- Brands whose marketing and product experiences currently feel disconnected
Not the right solution for:
- Narrative or emotional storytelling: use illustration
- Systems and relationships: use diagrams
- Ambiguous or high-risk actions: use labelled controls

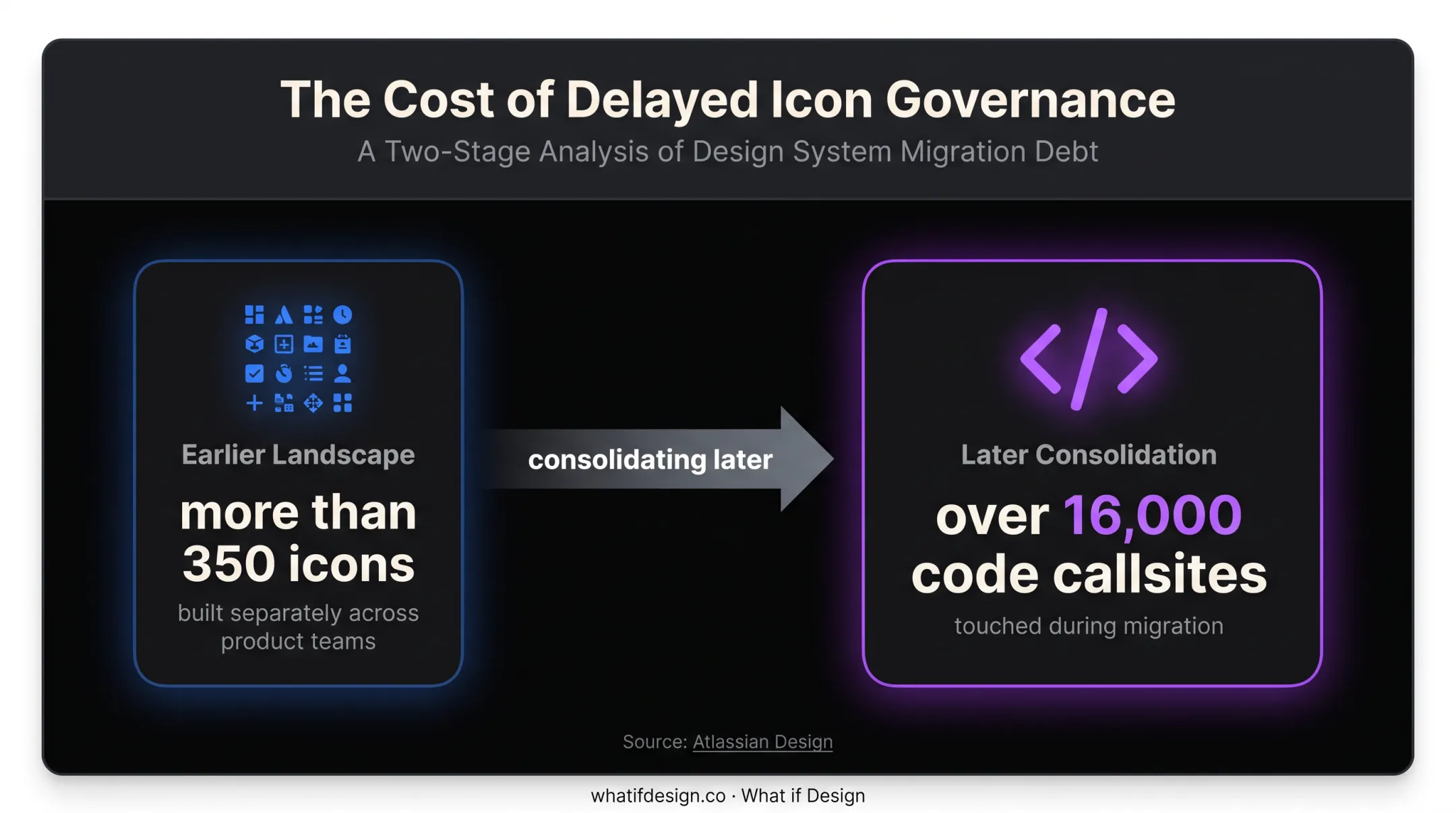

Atlassian's experience shows what happens when teams wait too long. Its earlier icon landscape had grown to more than 350 icons built separately across product teams, creating duplicate metaphors and inconsistent sizing. Consolidating it later meant touching over 16,000 code callsites. Formalising a system early is cheaper than migrating one later.
Tools and Infrastructure
A working system needs:
- A shared source-of-truth library, not three different design files
- A vector design tool with component structure
- A developer handoff process
- Version control with named, reviewable updates
- An agreed export format, whether SVG, icon font, or component
What to Gather First
Before design starts, gather:
- Brand strategy documents
- Audience and accessibility requirements
- Product and content inventories
- The icon audit from Step 1
- Platform constraints
- Typography and colour tokens
- Concrete examples of where icons will appear
Ownership, Accessibility, and Compliance
Assign ownership across brand, UX, product, content, engineering, and marketing. A system with no owner decays within two product cycles.
Check applicable WCAG requirements and platform guidance for how each icon is used—interactive versus decorative. Add a review step for cultural interpretation and inclusive representation when the brand serves multiple regions.
Few in-house teams already have brand strategists, UX designers, and engineers who have solved this together. What if Design connects brand strategy, product UX, and technical implementation for climate-tech and deep-tech organisations, turning complex science into a visual language three teams can share.
Key Parameters That Affect Icon Consistency
Consistency comes from controlling a system of relationships, not from making every icon look identical. Each parameter below should be documented with examples of what's approved and what isn't.
Grid, Keylines, and Optical Alignment
A shared grid controls proportion, padding, alignment, and rendering across vector and pixel formats. Geometric precision isn't the same as optical balance: diagonals, irregular forms, and visually heavy shapes often need manual adjustment to feel equal in weight, even while sitting inside the same keyline system.
Size, Detail, and Responsive Behaviour
Define minimum practical sizes and approved size tiers. Remove detail as icons shrink rather than scaling one detailed drawing everywhere, and decide when a responsive icon needs a simplified variant or an entirely different treatment.

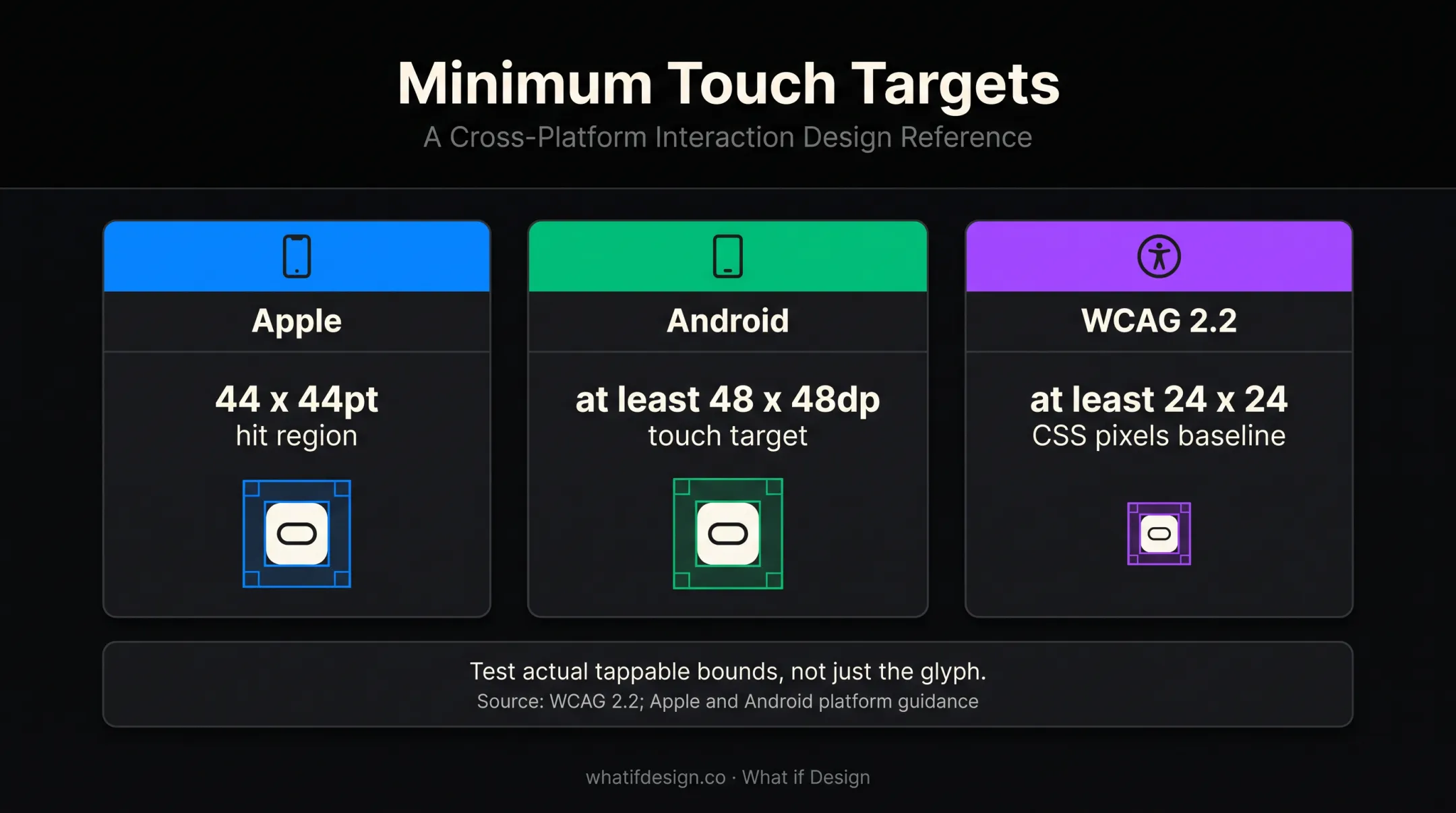

An icon's visual size and its tappable area are two different things. Minimum touch target guidance varies by platform:
- Apple: 44×44pt hit region
- Android: at least 48×48dp touch target
- WCAG 2.2: at least 24×24 CSS pixels as a baseline
These numbers aren't interchangeable: test the actual tappable bounds, not just the glyph.
Stroke, Fill, Corners, and Perspective
Document stroke weight, line caps, joins, corner radii, fill treatment, angles, and perspective so icons from different contributors still feel related. Filled and outlined variants can communicate state (selected versus unselected), but only if that rule is explicit and applied everywhere, not invented ad hoc per screen.
Colour, Contrast, and Meaning
Define approved colours, a monochrome default, status colours, dark-mode behaviour, and background combinations. Never let colour alone carry meaning; colour-blind users and poor lighting conditions will miss it. Meaningful icons need sufficient contrast against their background, and when colour isn't enough on its own, add shape, pattern, or a label.
Metaphor, Language, and Cultural Interpretation
Favour recognisable metaphors, such as a magnifying glass for search or a bell for notifications, but test technical, regional, or culturally specific symbols with real users before locking them in. Recognising a shape and correctly interpreting what action it performs are two different skills; a shopping-bag icon has been mistaken for a briefcase in usability testing.
Name icons after the visible object ("bell," not "alerts"), and use tags to capture function, synonym, category, and intended meaning so search and reuse stay consistent.
This is exactly the challenge in climate tech: there's no shared cultural shorthand yet for carbon capture or green hydrogen. Susteon's icon set had to be built and tested from scratch rather than borrowed from an existing library.
Common Mistakes, Troubleshooting, and Alternatives
Most fragmented icon libraries fail for the same handful of reasons:
- Skipping the audit. Designing new icons before understanding existing assets duplicates meaning. Map current usage and eliminate conflicting symbols first.
- Choosing style before function. A beautiful icon nobody understands is still a failure. Run moderated comprehension testing and compare against familiar conventions.
- Scaling one detailed icon everywhere. Fine detail disappears below a certain size. Create size-specific simplifications and test at actual display sizes.
- Relying on colour or novelty to carry meaning. Decorative flourish isn't communication. Add shape, pattern, or labels, and check contrast.
- Letting the library grow uncontrolled. Every contributor adding "just one more icon" yields five versions of a bin icon. Enforce one source of truth, naming standards, ownership, and review gates.
Not every communication problem is an icon problem. Switch medium when the job demands it:
- Illustrations for stories and emotion
- Diagrams for relationships and processes
- Text-backed controls for high-risk actions
Generic stock packs rarely capture a distinctive technical or strategic visual language. Weigh speed against customisation, and check licensing before standardising on borrowed assets.
Conclusion
A consistent icon system starts with purpose and audience, then translates brand strategy into clear, testable visual rules, not the other way round. Most inconsistency doesn't come from a lack of talent. It comes from weak governance, uncontrolled variants, skipped testing, or accessibility treated as an afterthought.
Treat iconography as a maintained part of your design system, not a one-time delivery. Give it an owner, a review process, and room to grow alongside your product and brand. Done well, it balances recognition, usability, flexibility, and brand expression. That is the balance we work toward with climate-tech and deep-tech founders who need visual languages for ideas that don't have one yet.
Frequently Asked Questions
What are the WCAG guidelines for icons?
WCAG’s non-text content criterion requires functional icons to have a text alternative; decorative icons can be hidden from assistive technology. Meaningful icons also need sufficient contrast and visible focus states under the WCAG version you target.
What are the 10 types of icons?
Sources disagree on a fixed list, but common types include UI, navigation, action, status, workflow, system, product, social, brand, and illustrative icons. Most brand systems only need a handful of these, not all ten.
What is iconography used for?
Iconography supports navigation, shows actions and status, and speeds up scanning. It also reinforces brand recognition and explains ideas that would otherwise need a full paragraph.
What are the elements of iconography?
Core elements include purpose and metaphor, grid, size, proportion, stroke, fill, corners, colour, spacing, accessibility, naming, and usage context. A documented system sets rules for each, with correct and incorrect examples.
